Neutrik NC6FRX-B XLR Cable Connector

SKU: NC6FRX-B-DON

19,05 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

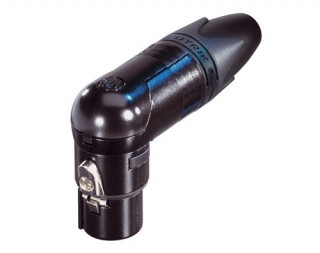

6 pole right angle female cable connector, black metal housing, gold contacts

The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits

Extra slim right-angle connector
5 selectable cable outlet positions
Unique cage design of female contact for low contact resistance and high integrity
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Female connector with improved solid metal latch which is larger and easier to handle
Additional ground spring contacts for better shell ground continuity
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Coloured rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Branded with unique hologram - guarantees genuine and authentic Neutrik product

Outlet Positions

Product

Title

NC6FRX-B

Connection Type

XLR

Gender

female

Electrical

Capacitance between contacts

? 7 pF

Contact resistance

? 3 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 2 G? (initial)

Rated current per contact

7,5 A

Rated voltage

< 50 V

Mechanical

Cable O.D.

3.5 - 8.0 mm

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiresize

max. 1.0 mm²

Wiresize

max. 18 AWG

Wiring

Solder contacts

Locking device

Latch lock

Material

Boot

Polyurethan

Contact plating

0.2 µm Au hard alloy over 2 µm Ni

Contacts

Brass (CuZn39Pb3)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Black chromium

Strain relief

Polyacetal (POM)

Environmental

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Contacts:	Goldplated pins
Series:	RX
Shell:	Black chromium
