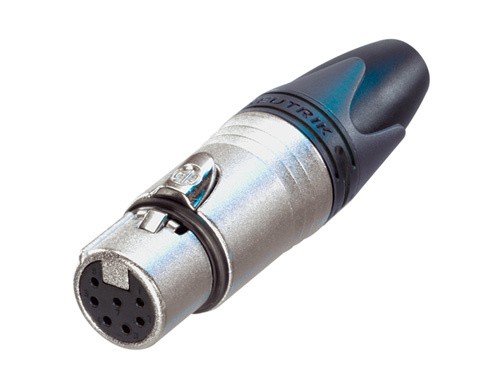

Neutrik NC7FXX XLR Cable Connector

SKU: NC7FXX-DON
GTIN: 7613187000065
Category: Plugs & Jacks
Manufacturers: Neutrik

12,76 €

per 1 pcs incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: 51 Workdays (DE - int. shipments may differ)

pcs

Please note the minimum purchase quantity of 50 pcs.

Description
Reviews

7 pole female cable connector with Nickel housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits

Unique cage design of female contact for low contact resistance and high integrity
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Female connector with improved solid metal latch which is larger and easier to handle
Additional ground spring contacts for better shell ground continuity
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, longlasting and dependable
Internal thread on shell is well protected against any damage
Branded with unique hologram - guarantees genuine and authentic Neutrik product

Product

Title

NC7FXX

Connection Type

XLR

Gender

female

Electrical

Capacitance between contacts

? 9 pF

Contact resistance

? 3 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

5 A

Rated voltage

< 50 V

Mechanical

Cable O.D.

3.5 - 8.0 mm

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiresize

max. 1.0 mm²

Wiresize

max. 18 AWG

Wiring

Solder contacts

Locking device

Latch lock

Material

Boot

Polyurethan

Contact plating

2 µm Ag over 2 µm Ni

Contacts

Brass (CuZn39Pb3)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Nickel

Strain relief

Polyacetal (POM)

Environmental

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Contacts:	Silver pins
Series:	XX
Pins:	7-Pol
Shell:	Nickel
Gender:	female
Shipping weight:	0,10 kg
