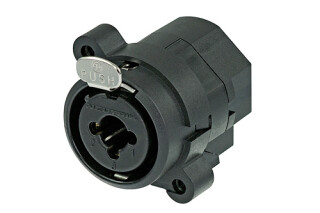

Neutrik NCJ9FI-S Jack

SKU: NCJ9FI-S-DON

3,77 €

incl. 19% VAT. ,

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

3 pole XLR female receptacle with 1/4" switching stereo jack, solder cups for wire termination

XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.

Features & Benefits

Combined XLR receptacle and 1/4" phone jack
Balanced or line inputs in one XLR shell
Saves rack space by combining 2 connectors in one housing
Very low conductor capacitance, therefore suitable for digital audio

Product

Title

NCJ9FI-S

Connection Type

Combo

Gender

female

Electrical

Contact resistance

< 10 m? (XLR)

Contact resistance

< 20 m? (jack & switching contacts)

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

7,5 A (XLR)

Rated current per contact

7,5 A (Jack)

Rated voltage

< 50 V

Switching contacts

Mechanical

Insertion force

? 25 N

Withdrawal force

? 25 N

Lifetime

> 1000 mating cycles

Panel thickness

max. 7 mm 0.27"

Mounting direction

Rear mounting

Material

Contact plating

0.2 µm Au hard alloy over 2 µm Ni

Contacts

Bronze (CuSn6)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Environmental

Temperature range

-30 °C to +80 °C

Item information	Value
Series:	Combo
