Neutrik NE8FBV-C5-S etherCON Chassis Connector B Series

Neutrik NE8FBV-C5-S etherCON Chassis Connector B Series

SKU: NE8FBV-C5-S-DON

8,63 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

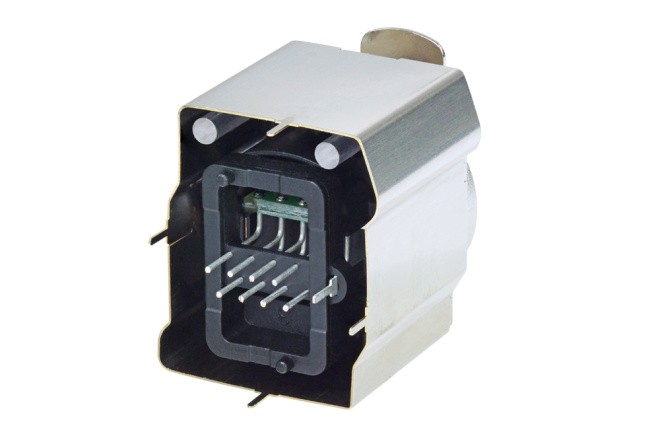

Vertical PCB mount RJ45 receptacle, CAT5e, shielded, B-Series cutout with latch lock, max. panel thickness 3 mm

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The B-Series offers a space saving design and a rugged metal front plate.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Features & Benefits

Vertical PCB design at 24 mm distance to front panel – fits the widely accepted industry standard dimension for XLRs, 1/4" jacks etc.
Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
Approved latch lock system
Ground panel connection
PoE+ compliant according to 802.3at Type2
CAT5e performance according to ISO/IEC 11801 and TIA/EIA 568-C.2

Product

Title

NE8FBV-C5-S

Gender

female

Electrical

Contact resistance

< 10 m?

Dielectric strength

1 kVdc

Frequencyrange

1 - 100 MHz

Insulation resistance

> 0.5 G?

Rated current per contact

1.5 A

Rated voltage

< 50 V

Transmission performance

CAT5e, acc. TIA/EIA 586C.2, IEC11801

Power over Ethernet

PoE+ acc. IEEE 802.3at

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Panel thickness

max. 3 mm (0.12'')

Wiring

vertical PCB mount

Locking device

Latch lock

Mounting direction

Rear mounting

Chassis shape

Material

Contact plating

0.2 µm Au over Ni plating

Contacts

Bronze (CuSn8)

Shell

PBT D202G30

Environmental

Flammability

UL 94 V-0

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Series:	B B Cat5e
