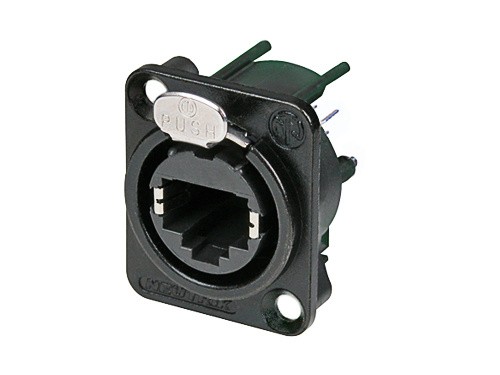

Neutrik NE8FDV-B etherCON Chassis Connector D Series

SKU: NE8FDV-B-DON

5,94 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

Vertical PCB panel mount RJ45 receptacle, black D-shape metal flange with latch lock, max. panel thickness 4 mm, mounting screws not included

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Features & Benefits

Accommodates NE8MC* or any standard RJ45 plug
Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
Approved latch lock system
Mountable from the front or rear of the panel
Ground-panel connection

Product

Title

NE8FDV-B

Gender

female

Electrical

Contact resistance

< 10 m?

Dielectric strength

1 kVdc

Frequencyrange

1 - 100 MHz

Insulation resistance

> 0.5 G?

Rated current per contact

1,5 A

Rated voltage

< 50 V

Transmission performance

Class D

Standard compliance

TIA/EIA 586B, IEC11801

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Panel thickness

max. 4 mm 0.16'

Wiring

vertical PCB mount

Locking device

Latch lock

Chassis shape

Material

Contact plating

0.2 µm Au over Ni plating

Contacts

Bronze (CuSn8)

Insert

PBTP 15 % GR

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Black chromium

Environmental

Flammability

UL 94 V-0

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Series:	D Cat5e D
Shell:	Black chromium
