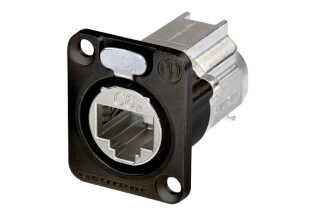

Neutrik NE8FDX-Y6-B etherCON Chassis Connector CAT6A

SKU: NE8FDX-Y6-B-DON

3301,21 ¥

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

D-shape CAT6_A panel connector, shielded, IDC termination, black housing

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Features & Benefits

Ruggedized connector with CAT6_A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
PoE+ compliant according to 802.3at Type2
Rugged latch lock system million fold proven
Intermateable with the existing etherCON CAT5 range
Shielded system - high noise immunity and EMI protection

Product

Title

NE8FDX-Y6-B

Gender

female

Electrical

Dielectric strength

1 kVdc

Insulation resistance

> 0.5 G?

Rated current per contact

1.5 A

Transmission performance

CAT6A, acc. TIA/EIA rating
CAT6_A, acc. IEC/ISO/EN rating

Power over Ethernet

PoE+ acc. IEEE 802.3at

Mechanical

Lifetime

> 1000 mating cycles

Wiresize

solid: AWG 26/1 - AWG 22/1
stranded: AWG 26/7 - AWG 22/7

Locking device

Latch lock

Mounting direction

Front mounting

Insulation diameter

0.85 - 1.6 mm

Material

Contact plating

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Black

Environmental

Flammability

UL 94 V-0

Temperature range

-40 °C to + 70 °C

Item information	Value
Series:	CAT6A
