Neutrik NF2D-B-6 Phono (RCA) Chassis Connector

SKU: NF2D-B-6

4,97 €

incl. 19% VAT. , plus

Made to order

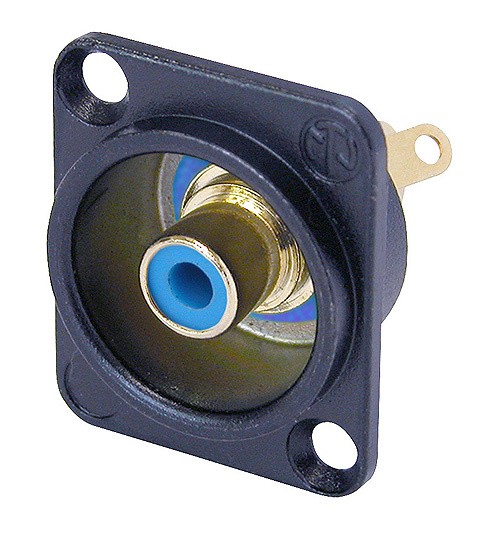

Phono socket in black chrome D-shape housing, blue isolation washers, solder version.

Features & Benefits

Precisely machined to our demanding quality standards
Gold plated contacts

Product

Title

NF2D-B-6

Connection Type

RCA

Gender

female

Electrical

Capacitance between contacts

? 9 pF

Contact resistance

<5G m?

Dielectric strength

0,5 kVdc

Insulation resistance

< 5 G?

Rated current per contact

16 A

Rated voltage

< 50 V

Mechanical

Lifetime

> 2000 mating cycles

Wiring

Solder contacts

Mounting direction

Front mounting

Chassis shape

Material

Contacts

Brass (CuZn39Pb3)

Shell

Zinc diecast (ZnAl4Cu1)

Contact plating

0.05 µm Au over 2 µm Ni

Environmental

Flammability

UL 94 HB

Standard compliance

IEC 601-14

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Series:	D Cinch
