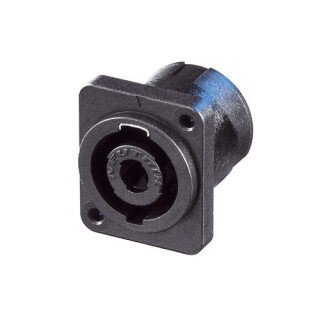

Neutrik NL4MD-H-2 speakON Chassis Connector

SKU: NL4MD-H-2-DON
Category: SpeakON

3,02 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

4 pole chassis connector, black D-size flange, mirrored self tapping screw holes (A-screw), horizontal PCB mount

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features & Benefits

Current rating 30 A rms
Glass reinforced materials make it extremely robust and dependable
Precise keyway for secure mating
Accurate twist lock latching system
Metal insert in locking area
Airtight design - optimized for speaker applications

Product

Title

NL4MD-H-2

Connection Type

speakON

Gender

male

Electrical

Contact resistance

? 3 m? (after lifetime)

Dielectric strength

4 kVdc (peak)

Insulation resistance

> 1 G? (after dampheat)

Rated current per contact

30 A rms continuous

Rated current per contact

40 A audiosignal, duty cycle 50 %

Rated voltage

250 V (Insulation)

Attention

speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

Lifetime

> 5000 mating cycles

Wiring

Horizontal PCB mount

Locking device

Quick Lock

Mounting direction

Rear mounting

Chassis shape

Layout

mirrored hole position, self tapping screw holes (A-Screw)

Material

Contact plating

4 µm Ag

Contacts

Bronze (CuSn6)

Shell

Polyamide (PA 6 30 % GR) black

Environmental

Flammability

UL 94 HB

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Series:	speakON
