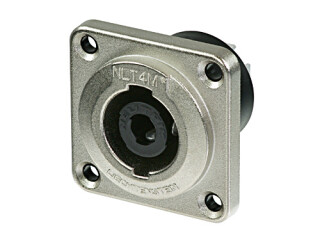

Neutrik NLT4MP Speakon 4 pole male chassis connector, metal housing, solder or ¼" flat tabs

SKU: DON-NLT4MP
GTIN: 4049371065245
HAN: NLT4MP
Category: Plugs & Jacks
Manufacturers: Neutrik

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

6,42 €

incl. 19% VAT. ,

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Features & Benefits

Extremely robust metal housing designed for harsh and demanding environment
Ideal product for touring applications and harsh environments
Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
Uses precise “Quick Lock” system
Mates with all currently available speakON products
Weatherproof built-in gasket meets IP 54 protection class (4 pole)
4 pole version has UL Recognized components, CSA listed
4 type range - also male cable connector and female receptacle on 4-pole version

Product

Title

NLT4MP-BAG

Connection Type

speakON

Gender

male

Electrical

Contact resistance

< 2 m? (inner) (after lifetime)

Dielectric strength

4 kVdc (peak)

Insulation resistance

> 10 G? (after dampheat)

Rated current per contact

40 A rms continuous

Rated current per contact

50 A audiosignal, duty cycle 50 %

Rated voltage

250 V (Insulation)

Attention

speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

Lifetime

> 5000 mating cycles

Locking device

Quick Lock

Chassis shape

square G-size flange

Layout

four thru holes

Material

Contact plating

4 µm Ag

Contacts

Spring copper

Insert

Polyamide (PA 6 30 % GR)

Shell

Zinc diecast (ZnAl4Cu1) black chrome

Environmental

Flammability

UL 94 HB

Protection class

IP 54 (mated condition)

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Material:	Metal
Gender:	male
Shipping weight:	0,10 kg
keine preissuchmaschinen:	1
