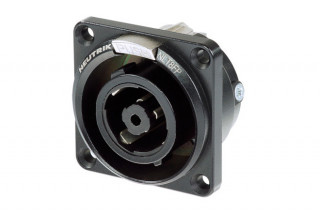

Neutrik NLT8FP-BAG speakON Chassis Connector STX Series

SKU: NLT8FP-BAG-DON
Category: SpeakON

19,05 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

8-pole female chassis, black-chrome metal housing, solder contacts

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Features & Benefits

Extremely robust metal housing designed for harsh and demanding environment
Ideal product for touring applications and harsh environments
Current rating 40 Amp continuous, 50 Amp audio signal with 50% duty cycle
Uses precise “Quick Lock” system
Mates with all currently available speakON products

Product

Title

NLT8FP-BAG

Connection Type

speakON

Gender

female

Electrical

Contact resistance

< 2 m? (after lifetime)

Dielectric strength

3 kVdc (peak)

Insulation resistance

> 10 G?

Rated current per contact

40 A rms continuous

Rated current per contact

50 A audiosignal, duty cycle 50 %

Rated voltage

250 V (insulation)

Attention

speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

Lifetime

> 5000 mating cycles

Wiresize

6 mm²

Wiresize

10 AWG

Locking device

Quick Lock

Chassis shape

square G-size flange

Layout

four thru holes

Material

Contact plating

4 µm Ag

Contacts

Spring copper

Insert

Polyamide (PA 6 30 % GR)

Shell

Zinc diecast (ZnAl4Cu1) black chrome

Environmental

Flammability

UL 94 HB

Protection class

IP 52 (mated condition)

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Series:	STX
