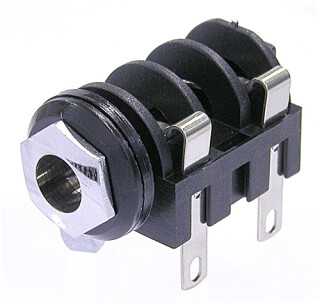

Neutrik NMJ2HC-S Jack M Series

SKU: NMJ2HC-S-DON

104,60 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

1/4" mono jack, unswitched, with chrome ferrule and standard solder lugs, mounting nut included

Features & Benefits

Wide body and extremely durable contacts
Mates with all mono A-gauge plugs acc. EIA RS-453 standard

Product

Title

NMJ2HC-S

Connection Type

Jack

Gender

female

Electrical

Contact resistance

< 15 m?

Dielectric strength

1 kVdc

Insulation resistance

? 1 G? @ 500 V dc

Rated current per contact

3 A

Mechanical

Insertion force

< 30 N

Withdrawal force

7 N

Lifetime

> 10000 mating cycles

Panel thickness

< 4.7 mm

Wiring

Horizontal PCB mount

Locking device

Retention spring

Mounting direction

Rear mounting

Chassis shape

11.4 mm

Material

Cap / Nut / Washer

PA 6.6 15% GR

Contact plating

2 µm Ni

Contacts

Bronze (CuSn6)

Shell

Polyamide (PA 6.6 15 % GR)

Environmental

Standard compliance

EIA RS 453, IEC 60603-11

Solderability

Complies with IEC 68-2-20

Temperature range

-25 °C to +70 °C

Item information	Value
Series:	M
