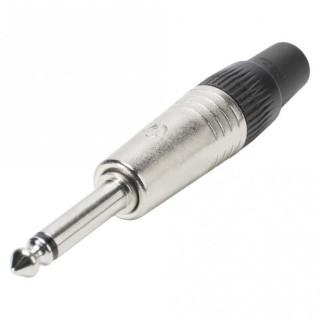

Neutrik NP2C2 pole 1/4" professional phone plug, Nickel housing

SKU: DON-NP2C
GTIN: 7613187004025
HAN: NP2C
Category: Plugs & Jacks
Manufacturers: Neutrik

2 pole 1/4" professional phone plug, Nickel housing

3,00 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

Features & Benefits Rugged diecast metal shell Chuck type strain relief for optimum cable protection Precision machined one-piece contacts - avoid hook up of tip contact Meets all prevailing standards

Product

Title

NP2C

Connection Type

Plug

Gender

male

Electrical

Contact resistance

depends on mating connector m? (inner)

Dielectric strength

1 kVdc

Insulation resistance

> 2 G? (initial)

Rated current per contact

depends on mating connector A

Rated voltage

50 V

Mechanical

Cable O.D.

4 - 7 mm

Lifetime

> 1000 mating cycles

Wiresize

1 mm²

Wiresize

18 AWG

Wiring

Solder contacts

Material

Bushing

Polyacetal (POM) + PU

Contact plating

2 µm Ni (Su)

Contacts

Brass (CuZn39Pb3)

Insert

Polyamide (PA 6.6 30 % GR)

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Nickel

Strain relief

Polyacetal (POM)

Environmental

Standard compliance

IEC 60603-11 / EIA RS-453

Solderability

Complies with IEC 68-2-20

Temperature range

-20 °C to +65 °C

Item information	Value
Series:	C
Pins:	2-Pol
Shell:	Nickel
Shipping weight:	0,10 kg
keine preissuchmaschinen:	1
