Neutrik NP3TM-R Plug MIL/B-Gauge Type

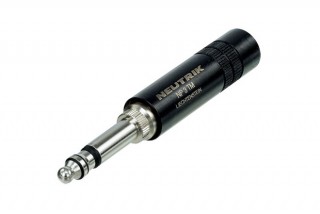

Neutrik NP3TM-B Plug MIL/B-Gauge Type
Description
1/4" MIL-plug (MIL-P-642/2), black metal housing, nickel contacts
Professional phone plugs in MIL type design according MIL standard MIL-P-642/*. They are featuring similar construction as the standard Neutrik phone plugs with chuck type strain relief and slimline metal barrel to meet the high requirements for military communication equipments. These plugs are not compatible with standard 1/4" jacks (acc. EIA RS453) and patch panels.
Features & Benefits
- ¼" B-Gauge and MIL type plugs
- One-piece Tip conductor ensures secure conductivity
- Metal shell and chuck type cable retention - robust and dependable
Product
Title
NP3TM-B
Connection Type
Plug
Gender
male
Electrical
Contact resistance
depends on mating connector m?
Dielectric strength
1 kVdc
Insulation resistance
> 2 G? (initial)
Rated current per contact
depends on mating connector A
Rated voltage
< 50 V
Mechanical
Cable O.D.
4 - 7 mm
Lifetime
> 1000 mating cycles
Wiresize
1 mm²
Wiresize
18 AWG
Wiring
Solder contacts
Material
Bushing
Polyacetal (POM) + PU
Contact plating
2 µm Ni (Su)
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Brass (CuZn39Pb3)
Shell plating
Black
Strain relief
Polyacetal (POM)
Environmental
Standard compliance
MIL-P-642/2
Solderability
Complies with IEC 68-2-20
Temperature range
-20 °C to +65 °C
