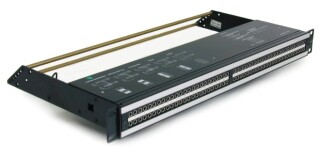

Neutrik NPPA-TT-IDC NPPA - 96 Bantam (TT) Panel

Neutrik NPPA-TT-IDC NPPA - 96 Bantam (TT) Panel

SKU: NPPA-TT-IDC-DON

1.204,40 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the permissible order quantity of 1 Units.

Description
Reviews

2 x 48 TT (Bantam) jacks, half normalled bottom row, fast and easy change of normalling with jumpers, 288 Krone-type IDC terminals, individual grounding

All NPPA patch panels are fitted with high quality, long life NJ3TTA gold plated double contact jacks (2x48), featuring best contact integrity. The unit, robustly housed in a black coated steel shell, is finished off with a built in cable bar and two large channel identification strips for perfect management of the system. The NPPA patch panels are an innovative and compact patching system (just 1U high) for 19" rack mounting.

Features & Benefits

Innovative and compact patching system (just 1U high) for 19" rack mounting
Robustly housed in a black coated steel shell
High quality long life gold plated Neutrik prewired double jacks with best contact integrity
Qualified for analog and digital signals acc. AES3, 48 kHz sampling frequency
Convenient change of normalling with the aid of jumpers
Flexible grounding system (see Assembly Instruction)

Product

Title

NPPA-TT-IDC

Connection Type

Patch Panel

Electrical

Signal Type

Digital suitability acc. AES/EBU (3.072 Mb/s and 6.144 Mb/s)

Contact resistance

20 m?

Contact resistance

< 25 m?

Dielectric strength

1 kVdc

Frequencyrange

DC to > 50 MHz

Insulation resistance

> 1 G?

Channel separation

> 100 dB @ 10 kHz, 600 terminated
> 40 dB @ 6 MHz, 110 terminated

Mechanical

Insertion force

< 10 N

Withdrawal force

> 8 N

Lifetime

> 5000 mating cycles

Locking device

Retention spring

Material

Contact plating

TRIBOR® (0.2 µm AuCo over 2 µm NiP) (Jacks)

Contacts

Bronze (CuSn6) (Jacks)

Shell

PA 66 blend (Jacks)

Shell plating

Black

Front panel

AlMgSi0.5 F22

Environmental

Temperature range

-30 °C to +80 °C

Product specific

Dimensions

482 x 44 mm (19'' x 1U)

Depth

178 mm (7'')

Suitable connectors

3 pole 4.4 mm (0.173") tiny telephone plug bantam type (NP3TT-*)

Channels

2 x 48 jacks, half normalled bottom, 288 IDC terminals (KRONE Type)

Item information	Value
Series:	NPPA NPPA - 96 Bantam (TT) Panels
Shipping weight:	1,50 kg
Item weight:	1,00 kg
