Neutrik NSC3F nanoCON

SKU: NSC3F-DON

13,53 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: 51 Workdays (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

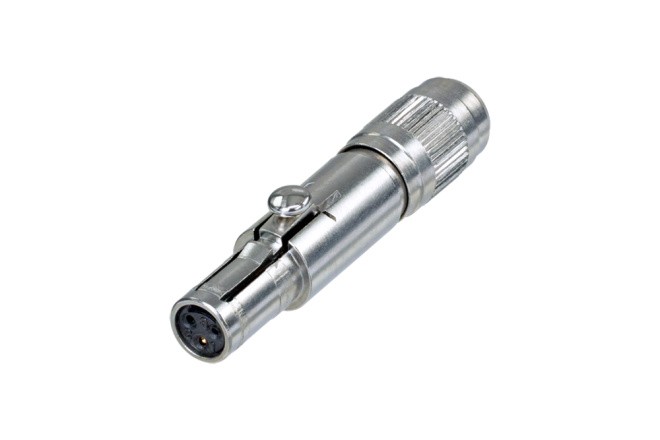

3 pole female cable connector, chuck type strain relief and solder contacts

The nanoCON is the smallest lockable 3 pole connector in the world. It offers a robust metal housing, a metal locking device, gold plated contacts and excellent cable retention.

Features & Benefits

World's smallest circular lockable multipole connector
Robust metal housing with gold plated contacts
Reliable and versatile in applications like medical equipment, control systems, sensors or audio applications such as miniature and wireless microphones and portable mixers
Pre-mating contact 1

Product

Title

NSC3F

Connection Type

nanoCON

Gender

female

Electrical

Contact resistance

? 12 m?

Dielectric strength

1 kVdc

Insulation resistance

> 1 G? (after damp heat test IEC 68-2-30)

Rated current per contact

2 A

Rated voltage

< 50 V

Mechanical

Cable O.D.

max. 3.4 mm

Cable retention

> 20 N

Insertion force

< 15 N

Lifetime

500 mating cycles

Wiresize

0.2 mm² / 0.14 mm² (solid / stranded wire)

Wiresize

24 AWG / 26 AWG

Locking device

Latch lock

Material

Contact plating

0.5 µm Au

Contacts

Brass (CuZn35Pb2)

Insert

PETP

Shell

CuSn4Pb4Zn4

Strain relief

Polyacetal (POM)

Environmental

Temperature range

-30 °C to +80 °C

Series:	nanoCON
