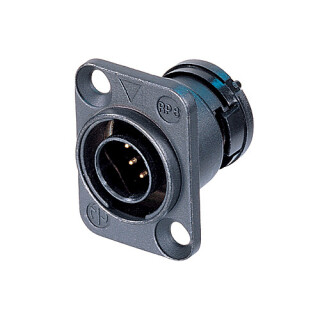

Neutrik ORP8M neutriCON Connector

SKU: ORP8M-DON

5,40 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

8 pole male chassis connector, solder contacts, 180° coding, black housing

The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.

Features & Benefits

Contact configuration can be selected from 1 to 8 contacts
Easy assembly: Contact soldering in disassembled condition avoids awkward wiring of high density contacts.
Precise and robust all metal housing
Push-pull self-locking system

Product

Title

ORP8M

Connection Type

neutriCON

Gender

male

Electrical

Contact resistance

? 5 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 0.5 G? (after damp heat test IEC 68-2-30)

Rated current per contact

7,5 A

Rated voltage

< 50 V

Mechanical

Cable retention

> 50 N

Insertion force

< 25 N

Lifetime

> 1000 mating cycles

Wiresize

1 mm²

Wiresize

18 AWG

Wiring

Solder contacts

Locking device

Push-Pull

Mounting direction

Front mounting

Material

Contact plating

0.3 µm Au hard alloy over 2 µm Ni

Contacts

Brass (CuZn35Pb2)

Insert

PBTP 15 % GR

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Black chromium

Environmental

Flammability

UL 94 HB

Protection class

IP 5X

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Series:	neutriCON neutriCON Connectors
