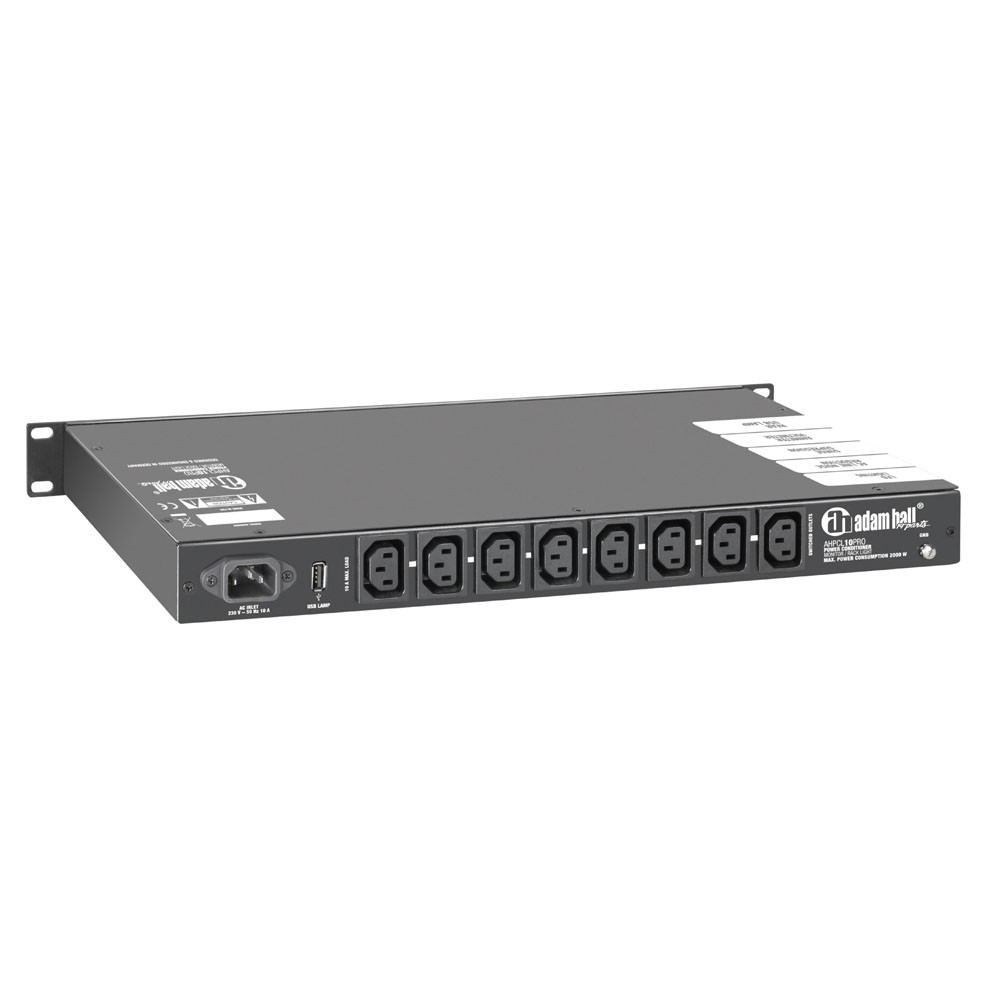

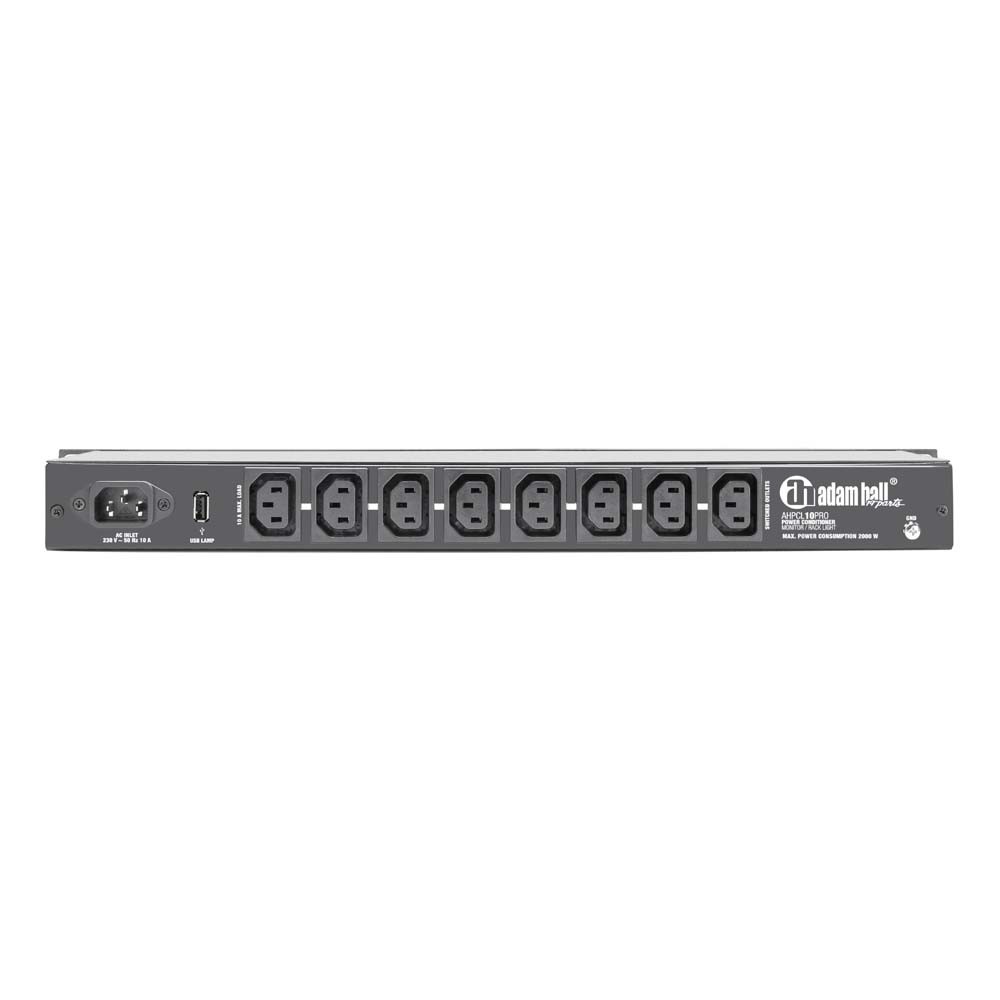

Power Conditioner with voltmeter and ammeter and rack lighting
Category
Item no.
- DA-20171388
Description
- Reliable protection against over-voltage and impulse voltage
- Effective high frequency filter against interference
- Central power supply with 8 switchable IEC sockets

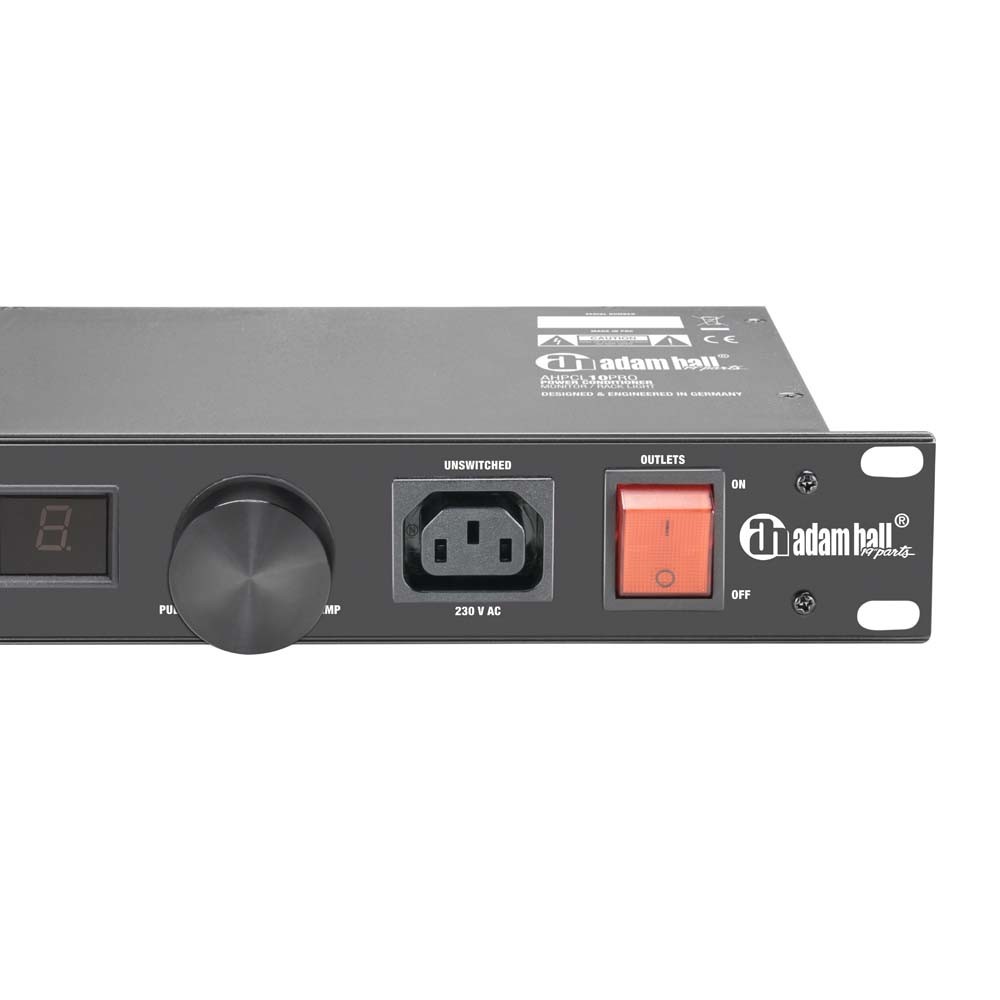

- Unswitched convenience socket on the front
- Resettable circuit breaker on the front panel
- 2 pull-out LED rack lights with dimmer
- LED gooseneck lamp with USB connection for the lighting of the rack

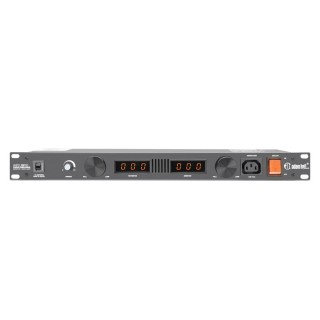

- Volt and ammeter with easy-to-read display
Product type
19 " Rack power strips
Type
19" / 1 U
Number of outlets (IEC C14)
9
Input voltage
230 V
Nominal Impedance
max 10 A
Protection Against Impulse Voltage
neutral conductor to earth , outer conductor to neutral , outer conductors to protection light
Response Time
1 ns
Max. Surge Current
6000A (8x20 µs pulse)
Max. Surge Energy
70 joules per contact
Noise Cancelling
<20 dB, 1.5 MHz-200 MHz
Mains connector
IEC mains cord
Fuse
10 A
Width
482 mm
Height
44.5 mm
Depth
190 mm
Weight
3,18 kg
Features
incl. telescopic rack lights and multimeter , including 4 power cords
