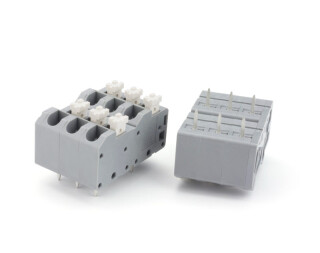

Screwless Terminal ML-2200-W1S1, 300V-3A

starting from 2,45 € per 1 Stk
(2,06 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 14 days
  • Minimum purchase: 20 Stk
Order Now
Please select

Item no.
  • ML-2200-W1S1
Product weight
  • 0,01 kg


Terminal model: PC terminal
Wire strip length: 8mm
Wire range: Solid : 0.4mm-1.2mm (AWG26, AWG16 (-18 : TUV))Stranded : 0.3mm20.75mm2 (AWG22, AWG20)
Wire range Diameter: Diameter of each strand : 0.18mm min.
Suitable wire size for maximum rating:
Main insulator (housing): Nylon 66 (UL94V-0)
Number of poles:
Approvals: UL (approved for field wiring), C-UL, TUV (IEC60947-7-1)
Dielectric strength: AC2000V (1 min)
Pitch: Pitch 5mm
Rating: 300V-3A
