Thick Wall Diecast Enclosure 147x223x50 mm, Natural Aluminum

27,90 £

incl. 19% VAT. , plus

Stk

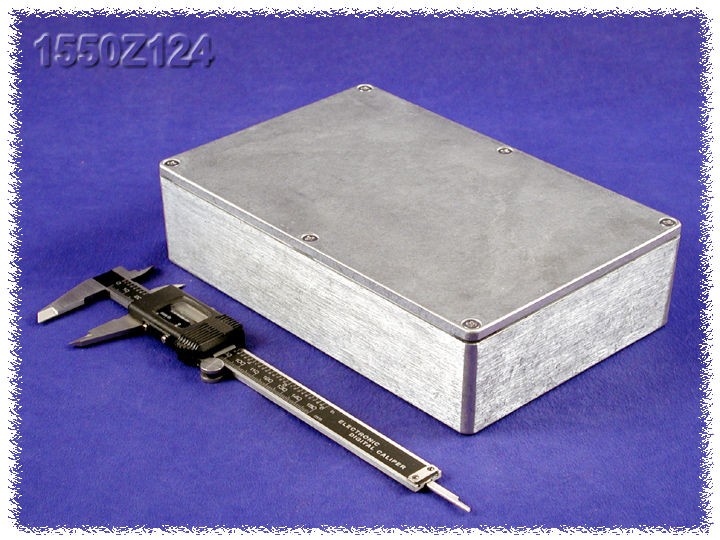

Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure.
Lap joint construction protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding. Link here to our gasketed, watertight IP 66 rated version (1550W series) - or see optional gasket kits (below)
Unpainted version is vibra finished for a smooth surface with no sharp edges.
Painted version is painted with tough - satin black polyester - powder paint for a lasting finish, even after machining. Black screws are included to enhance the assembled appearance.

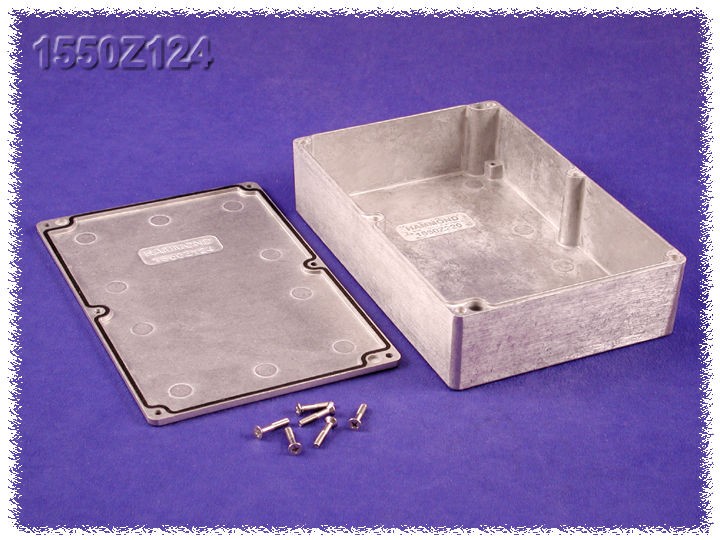

Four M3.5 x 0.6 x 12 mm long stainless steel, Philips head, machine screws secure lid - into factory tapped holes.
Replacement screws for the unpainted series - 1550MS100 - Package of 100
Replacement screws for the black series - 1550MS100BK - Package of 100
Designed to meet IP 54 (see gasket kits below for upgrades)
No internal ribs for easy installation of connectors without interference or additional milling.
Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
