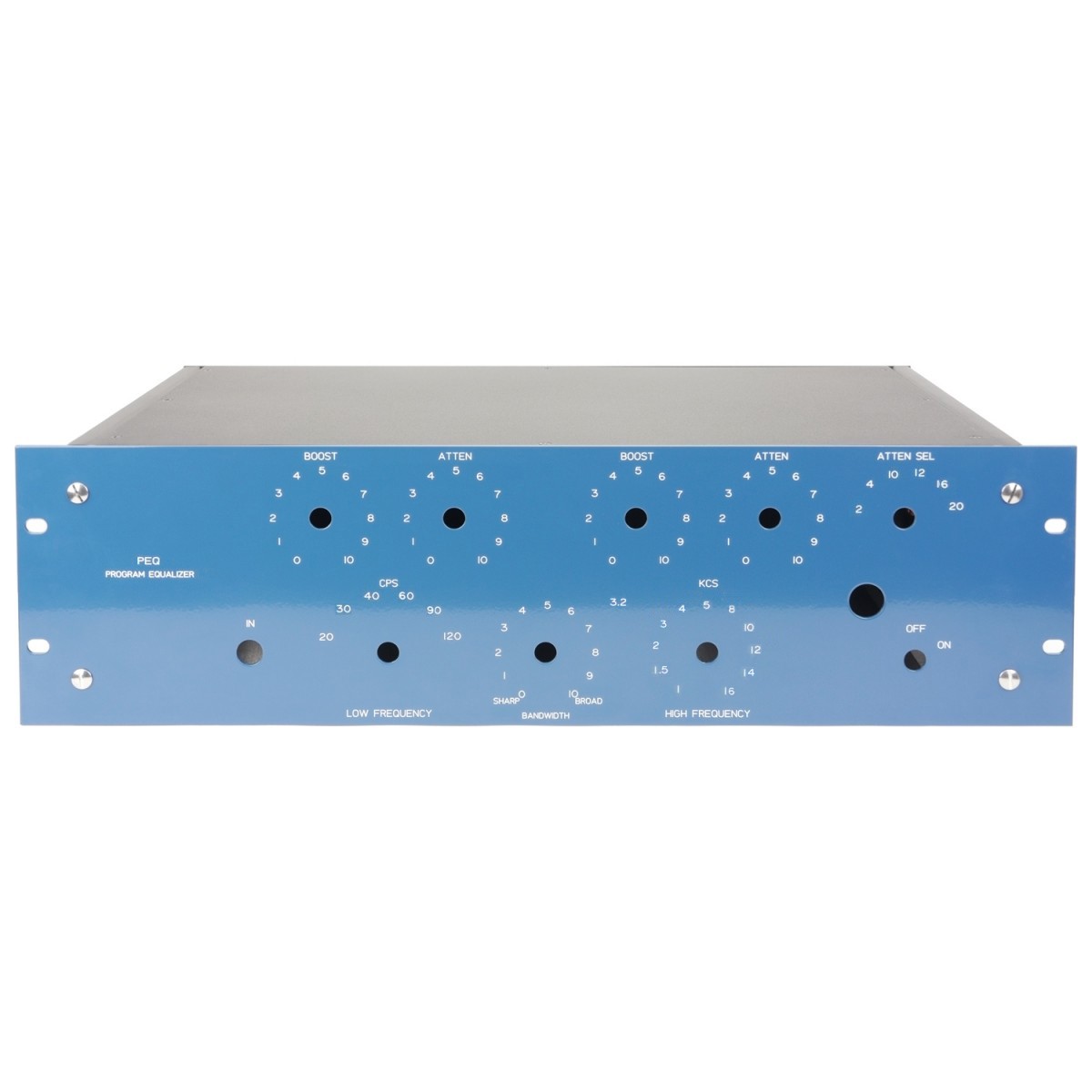

Classi PEQ 3HE Frontpanel, 100,34 €

PEQ Inductor

Please select a maximum of 1.

Inductor RM8 - PEQ 312mh,155mh,78mh,39mh,26mh Standard, none

RM Inductor for PEQ +29,95 €: Item details

Quantity: 1

G-Pultec Enhanced Inductor 312mH,155mH,78mH,39mH,26mH

EF Inductor PEQ +27,65 €: Handwounded EF inductor. Sweet coloration.

Item details

Quantity: 1

PEQ OPA Gainstage Kit

optional

Classi PEQ OPA Gainstage Kit +86,38 €

This Classi PEQ OPA Gainstage is an quality audio gainstage for the Classi PEQ project. It is based on NE5532 OP-Amps which are favored for professional studio applications and have a great headroom and low noise floor and outstanding natural sound. It replaces a tube SRPP Stage to build up a tubeless audio circuit. The Kit includes all parts to complete the OPA Gainstage:

Features:

- Ultra natural sound based on OPAs
- Adjustable Input/Output-Gain by Resistor or pot Modification
- Optional enhanceable with output/input transformers - For example: Lundahl LL5402 or Edcor XS1100
- Matched Bypass Volume
- Multiple Bypass Functions
- Ground Lift
- Voltage Filtering and Smoothing Circuit
- Easy to assemble

Included:

1 x "2 x 15V" Audio Toroidal Transformer with integrated Don-Audio Trafo Shield
1 x Classi PEQ OPA Gainstage PCB
2 x OPAs - Ultra low noise floor
1 x LED Lamp
2 x Neutrik goldplated Jacks
2 x OP-Amp NE5532
2 x Voltage Filtering&Smoothing Power Elkos
2 x Voltage Smoothing Rectifier
1 x Metal Film Resistors Bundle
1 x Wima Caps, Rectifiers, Elkos, Sockets & Accessories Bundle

Item details

Quantity: 1

3U Enclosure incl. IEC and 2 x Neutrik XLR Gold Jacks

optional

3U Enclosure Set PEQ with front stabilisation mounting...

Professional 3U Enclosure incl. IEC and Neutrik Jacks +87,31 €: Item details

Quantity: 1

Classi PEQ PCB & Caps Kit

optional

Classi PEQ Filter Caps & Accessories Kit

Classi PEQ PCB & Caps Kit +58,34 €: Item details

Quantity: 1

Output Transformer

Please select a maximum of 1.

Make your PEQ sound more colored with an output transformer by Lundahl or Edcor

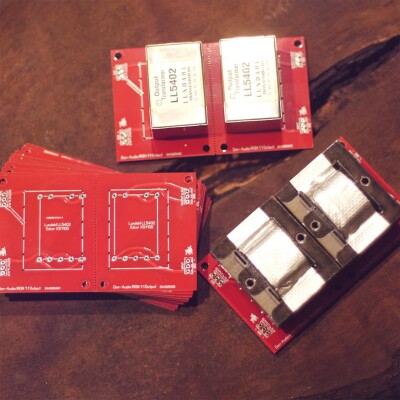

Don-Audio IRON - Transformer Output Module

Don-Audio IRON - Transformer Output Module +11,95 €: Transformer 1:1, 1:2 Output Modul based on Lundahl 5402 or XS1100

Item details

Quantity: 1

Lundahl LL5402 Audio transformer +70,08 €: Lundahl LL5402 is an audio output transformer for unbalanced drive, ideally used with mixed feedback drive circuits.
Turns ratio: 2 + 2 : 1 + 1

Item details

Quantity: 1

Edcor XS1100 +65,98 €

Products specifications for Edcor XS1100 transformer.


Schematic
Input Maximum Voltage	7.5Vrms
Turns Ratio	2+2:1+1
Primary (input) Impedance	Low Impedance
Primary (input) DCR	104 Ohms & 120 Ohms
Secondary (output) Impedance	>600 Ohms
Secondary (output) DCR	64 Ohms & 56 Ohms
Frequency Response	10~50K Hz., <1dBu
THD+Noise	<0.01% @ 1K Hz.
Plot	Frequency Response/THD+N
Copper Shielding	Yes
Bobbin Material	Glass Filled Nylon 6/6
Flamability Rating	Class B 130°C
Core Material	M6 29 ga. line grain oriented steel
Termination	12 pin PCB
Mounting	Printed circuit board mounted (PCB)
Weight	0.45 lbs.
Dimensions	1.875" (L) x 1.54" (W) x 1.125" (H)
Dimensional Drawing	15000-EI625-050-P12
Manual	XS1100 Manual
Compliance

Schematic

Input Maximum Voltage

7.5Vrms

Turns Ratio

2+2:1+1

Primary (input) Impedance

Low Impedance

Primary (input) DCR

104 Ohms & 120 Ohms

Secondary (output) Impedance

>600 Ohms

Secondary (output) DCR

64 Ohms & 56 Ohms

Frequency Response

10~50K Hz., <1dBu

THD+Noise

<0.01% @ 1K Hz.

Plot

Frequency Response/THD+N

Copper Shielding

Yes

Bobbin Material

Glass Filled Nylon 6/6

Flamability Rating

Class B 130°C

Core Material

M6 29 ga. line grain oriented steel

Termination

12 pin PCB

Mounting

Printed circuit board mounted (PCB)

Weight

0.45 lbs.

Dimensions

1.875" (L) x 1.54" (W) x 1.125" (H)

Dimensional Drawing

15000-EI625-050-P12

Manual

XS1100 Manual

Compliance

Item details

Quantity: 1

Transformer mounting base

optional

V-Case Transformer mounting base +18,73 €: Mount the trafo on the side panel and get a better weight balance without the need to drill trough the bottom panel.

Item details

Quantity: 1

Daka-Ware Knobs Bundle

optional

Classic EQP-1A Complete Knob Set - Daka-Ware Chicago

Classic EQP-1A Complete Knob Set - Daka-Ware Chicago +90,71 €: 5 x Daka-Ware EQP-1A Boost/Atten knobs
2 x EQP-1A Frequency Bar knobs
1 x Daka-Ware on/off knob
1 x Daka-Ware Chicken-Head knob

Item details

Quantity: 1

product/group	price
incl. 19% VAT. , plus shipping costs

Gear:

Shipping weight:

0,50 kg

Item weight:

0,49 kg
