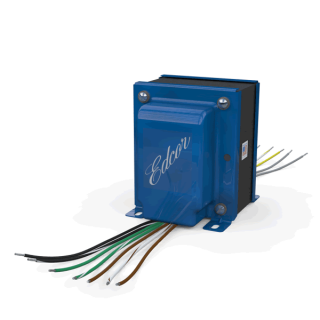

Edcor XPWR144 Tube Power transformer for a 120V or 240V, 50/60Hz. line to 760V, 6,3VCT, 5V

138,28 €
(116,20 € excl. vat)
including 19% VAT., plus shipping
  • Made to order
  • Shipping time: 57 - 58 workdays
Order Now
Category
Item no.
  • XPWR144
Product weight
  • 3,06 kg
Shipping weight
  • 3,40 kg

Interesting items

  1. Mundorf TubeCap  200 uF ±5%, 550VDC
    Mundorf TubeCap 200 uF ±5%, 550VDC
    69,90 €
    (58,74 € excl. vat)
    including 19% VAT., plus shipping

  2. Mundorf TubeCap 10 uF ±5%, 1000VDC
    15,90 €
    (13,36 € excl. vat)
    including 19% VAT., plus shipping

Description

Power transformer for a 120V or 240V, 50/60Hz. line to 760V and 640V (380-320-0-320-380) at 200mA center tapped, 6.3V (3.15-0-3.15) at 3.5A center tapped and 5V at 3A.

Design
Mathematically designed to produce the specified voltage(s) when loaded.

Primary (Input)
Designed for 120V or 240V, 50/60Hz.

Secondary (Output)
This transformer has multiple voltage windings, 760V and 640V (380-320-0-320-380) at 200mA center tapped, 6.3V (3.15-0-3.15) at 3.5A center tapped and 5V at 3A.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's standard bobbin with black finishing tape.

Termination
The terminations are UL1015 18 ga. lead wire.

Mounting
This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.
