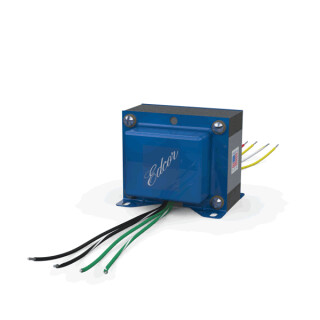

Power transformer, Sec.: 275V (137.5-0-137.5) @125mA center tapped, 13V (6.5-0-6.5) @900mA center tapped, shielded

138,40 €
(116,30 € excl. vat)
including VAT., plus shipping
  • Availability: 2
  • Shipping time: 1 - 2 workdays
Order Now
Category
Item no.
  • XPWR168
Product weight
  • 1,11 kg
Shipping weight
  • 1,11 kg

Description

Power transformer for a 120V or 240V, 50/60Hz. line to 275V (137.5-0-137.5) at 125mA center tapped and 13V (6.5-0-6.5) at 900mA center tapped with copper shielding.
Design
Mathematically designed to produce the specified voltage(s) when loaded.

Primary (Input)
Designed for 120V or 240V, 50/60Hz.

Secondary (Output)
This transformer has multiple voltage windings, 275V (137.5-0-137.5) at 125mA and 13V (6.5-0-6.5) at 900mA center tapped.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.



The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's standard bobbin with black finishing tape.

Termination
The terminations are UL1015 18 ga. lead wire.

Mounting
This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.
