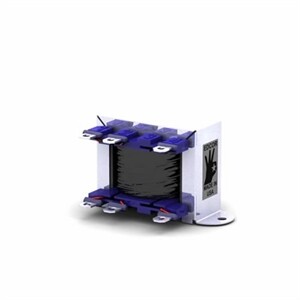

Edcor XSM15K/15K transformer

59,38 €
(49,90 € excl. vat)
Scale price:
  • from 10: 58,19 €*
  • from 20: 57,01 €*
  • from 50: 55,82 €*
  • from 100: 53,44 €*
* Price per unit
Scale price:
  • from 10: 58,19 €*
  • from 20: 57,01 €*
  • from 50: 55,82 €*
  • from 100: 53,44 €*
* Price per unit
including VAT., plus shipping
  • In stock!
  • Stock: More than 10 available
  • Shipping time: 1 - 2 workdays
Order Now
Category
Item no.
  • XSM15K/15K
Product weight
  • 0,34 kg
Shipping weight
  • 0,40 kg
Compliance

Interesting items

  1. Edcor XSM10K/10K
    Edcor XSM10K/10K
    59,38 €
    (49,90 € excl. vat)
    including VAT., plus shipping
  2. Hammond Audio Transformer 124B
    Hammond Audio Transformer 124B
    57,84 €
    (48,61 € excl. vat)
    including VAT., plus shipping

Description

Recommended output trafo for Orange 86. 15K ohms CT to 600 ohms CT Interstage Matching Transformer RoHS Compliant
Products specifications
Schematic
Wattage 2.5W
Input Maximum Voltage 50Vrms
Turns Ratio 5:1
Primary (input) Impedance 15K Ohms
Primary (input) DCR 775 Ohms
Secondary (output) Impedance 600 Ohms
Secondary (output) DCR 165 Ohms
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.05% @ 1K Hz.
Insertion Loss 0.5 dB
Bobbin Material Glass Filled Nylon 6/6
Flamability Rating Class B 130°C
Core Material M6 29 ga. line grain oriented steel
Termination 0.187" (3/16") quick disconnects
Mounting Zinc plated steel channel/frame
Weight 0.75 lbs.
Dimensions 2.815" (L) x 1.79" (W) x 1.64" (H)
Dimensional Drawing 15000-EI625-075-18
Manual WSM Series Manual
