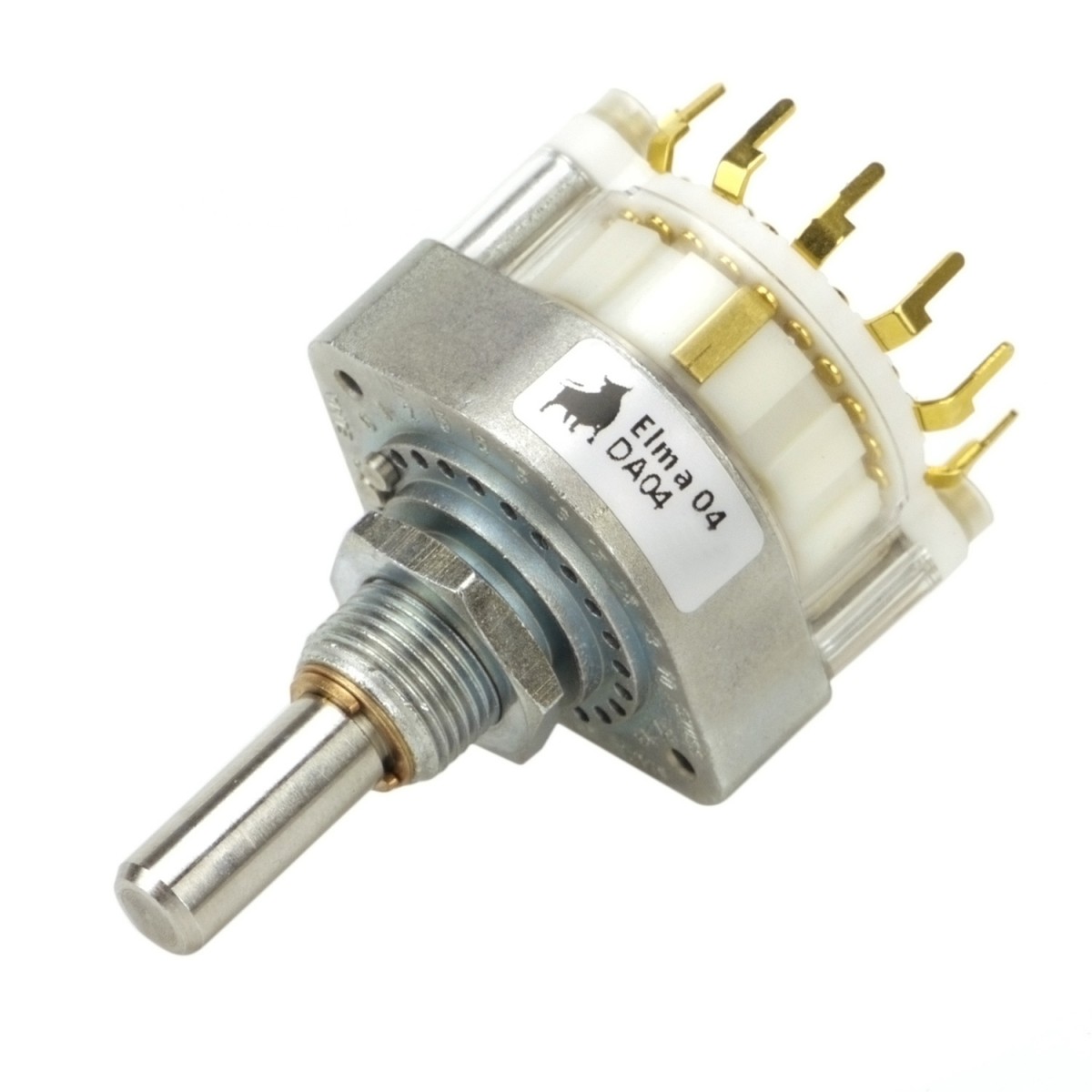

Elma Rotary switch Type 04 PCB Pins 1 Wafer 1 x 12 Non-Shorting 30° 04-1124

68,88 €
(57,88 € excl. vat)
including 19% VAT., plus shipping
  • Availability: 3
  • Shipping time: 1 - 2 workdays
Order Now
Category
Manufacturer
Item no.
  • DA00310
Shipping weight
  • 0,10 kg
Switching mode
Pin type

Description

Very robust and versatile 24 Position Multi Wafer Selector Switch.

  • Up to 12 Positions multi wafer selector switch
  • Very robust and versatile
  • 25,000 switching cycles with up to 20.0 Ncm switching torque
  • Gold plated contacts: 3 micron
  • Robust metal housing with metal shaft
  • Optional IP68 front panel sealing
  • Operating temperature range: -40 to +85°C
  • Various options and customization
  • Switchingmode: 15° Indexing angle for shorting versions and 30° for non-shorting versions.
  • 6mm shaft

Elma Type 04 Switch Pin version

This rotary switch is also available as concentric version. Please contact us - we will make an offer for you for the concentric version.
