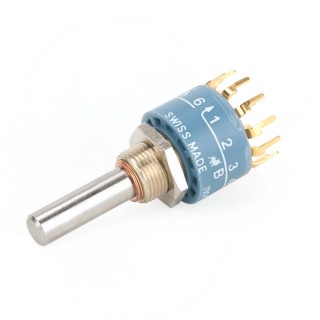

Elma rotary switch Type 01, PCB Pins, 1 Wafer 2 x 6, Non-Shorting, 6mm shaft, 30°, 01-1264-20N

35,22 €
(29,60 € excl. vat)
Scale price:
  • from 4: 34,52 €*
  • from 6: 33,46 €*
* Price per unit
Scale price:
  • from 4: 34,52 €*
  • from 6: 33,46 €*
* Price per unit
including VAT., plus shipping
  • Availability: 2
  • Stock: 2 available
  • Shipping time: 1 - 2 workdays
Order Now
Category
Manufacturer
Item no.
  • DA01-1264-20N
Product weight
  • 0,01 kg
Shipping weight
  • 0,10 kg
Switching mode
Pin type

Interesting items

  1. Bakelite Knob Fester RCA black 26mm Mid-Size
    Bakelite Knob Fester RCA black 26mm Mid-Size

    Average Rating: 5/55
    starting from 5,93 €
    (4,98 € excl. vat)
    including VAT., plus shipping
  2. Elma Stop Pin for Type 01 Switches
    Elma Stop Pin for Type 01 Switches
    0,94 €
    (0,79 € excl. vat)
    including VAT., plus shipping

Description

Compact 6 positions selector switch, 25,000 switching cycles with up to 6.0 Ncm switching torque, gold plated contacts: 3 micron, robust metal housing with metal shaft, optional IP68 front panel sealing, operating temperature range: -40 to +85°C, various options and customization.

  • Compact 6 positions switch
  • 25,000 switching cycles with up to 6.0 Ncm switching torque (4Ncm standard)
  • Gold plated contacts: 3 micron
  • Robust metal housing with metal shaft
  • Optional IP68 front panel sealing
  • Operating temperature range: -40 to +85°C
  • Various options and customization
  • 6mm shaft diameter / 39,2mm shaft lenght  (standard)
  • Torque 4Ncm



Options:

Choose your Pins

Elma Type 01 switch eyelets and pcb pins





  • PCB Pins
  • Eyelets






Select Wafers, Poles x Positions

Elma poles position diagram
For multiple wafers divide the poles by the wafers to get the number of poles for each wafer.
Example: if you select 2 Wafers and 2 Poles you have 1 Pol on each wafer.


Other possible shaft options:





  • 3mm shaft diameter / 59mm lenght
  • 6mm shaft diameter / 28mm lenght

This rotary switch is also available as concentric version. Please get in contact with us - we will make an offer for you for the concentric version.





Customer-Pics

Log in to upload a pic!


At moment there are no customer pics for this product.
