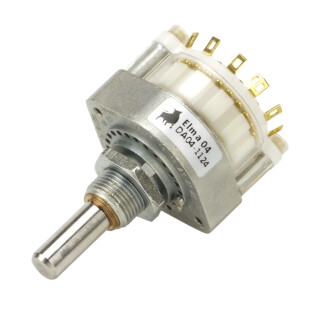

Elma Rotary switch Type 04 PCB Pins 1 Wafer 4 x 5 Shorting 15°

(19 Reviews)

SKU: DA04-1453-20
Category: Rotary switches
Manufacturers: Elma

Very robust and versatile 24 Position Multi Wafer Selector Switch.

63,06 €

incl. 19% VAT. , plus

From	Unit price
2	58,97 €*
10	58,10 €*
20	55,50 €*

5 In stock
Delivery time: 1 Workdays (DE - int. shipments may differ)

Up to 24 Positions multi wafer selector switch
Very robust and versatile
25,000 switching cycles with up to 20.0 Ncm switching torque
Torque: 1,5Ncm, 8Ncm (standard), 15Ncm, 20Ncm
Gold plated contacts: 3 micron
Robust metal housing with metal shaft
Optional IP68 front panel sealing
Operating temperature range: -40 to +85°C
Various options and customization
Switchingmode: 15° Indexing angle for shorting versions and 30° for non-shorting versions.
6mm shaft

Elma 04 Switch Angles

This rotary switch is also available as concentric version. Please get in contact with us - we will make an offer for you for the concentric version.

Switching mode:	Shorting
Pin type:	PCB
Shipping weight:	0,10 kg
Item weight:	0,03 kg

Average item rating

All reviews:

Most helpful item review

2 from 2 people found this helpful.

Elma Typ 04 Schalter
Mir wurde Don-Audio von Elma empfohlen und ich bin sehr zufrieden mit der einwandfreien Lieferung und dem herausragenden Support, der mir bei der Wahl des richtigen Schalters sehr behilflich war. Darüber hinaus wurde mir auch bei meinem Projekt geholfen, also sehr empfehlenswerte Elma Quelle.

Harald B , 19.11.2015

Entries 1 – 10 of 18

ELMA 04-1133 switch
I bought two ELMA 04-1133 switches for my great river mp2 vintage pre-amp project. The golden eyelet pins and quality of this switch is what i suppose to be high-end. Soldering the resistors was a little bit effort but worked great and fast with these eyelets even if i used to solder with high temperatures - no problem... The tactile feel is strong and precise, it is a good feeling to turn this switch. A good investment i will do again.

Amp , 19.11.2015

Switch phono
I bought this product to build a selector to switch between three tonearms. My pre-amplifier phono having only one one input I was moving often the modulation cables to do the switch.
There are commercial boxes but those are designed for line-level signals not for low level signals (MC cartridges). Furthermore, those boxes do not implement the mass connector.
The ELMA 04-1434 allows to have 3 inputs and one output while switching the hot and mass conductors for each tonearm.
The mass connector must be implemented in the DIY box.

Aliro V , 15.05.2017

Material
Very strong material, best switches in the market. I used it for my fripholms TG1 project

Michael C , 13.01.2018

A+++
Super quick transaction, like a domestic delivery!!

Kimiko I , 24.03.2018

highly recommended
premium grade switch, fast delivery, good communication

Laszlo S , 18.03.2019

Great robust switch High Grade!
MIL spec level and the optional set-pin for fixing the position worked like a charm and is reversible (instead of trying to pull out the original pin and putting it in the new position).

My request of asap delivery was answered and I had the switch in-house in a couple of days.

Arno P , 05.07.2019

Excellent product
High quality, high performance product for high end applications. Highly recommended!

Jussi A , 06.09.2019

1 from 1 person found this helpful.

Excellent quality, and fast Delivery
I was looking for a high quality switch to build a RCA switch. This Elma switch doesnt disappoint I hardly recommend anyone who needs a high quality switch for audio to try this switch.

As this was my first purchase at Dons Audio the switch was very well packaged and send at the same day.
So excellent service on there part and I will be a returning customer for sure.

R. S , 15.09.2019

Nice store
I am happy to have found this store. This is the only suitable place where an Elma switch with PCB pins is available. Great service, well packaged, shipped quickly.
However, the very expensive shipping cost is disappointing. This is an unpleasant disadvantage.
Thank you.

Michael O , 09.10.2019
