Gotham Audio 300 m Coil, Type 01060 GVC-1 SDI Cable PVC or FRNC (01061)

634,53 €

(533,22 € excl. vat)

including VAT., plus shipping

Order Now quantity: + (Increase quantity) - (Decrease quantity) Stk

Category

Item no.

Product weight

Shipping weight

Description

Professional Video cable for Installations. HD and SDI suitable

Video Cable GVC-1 SDI/CE FRNC 300 m Black

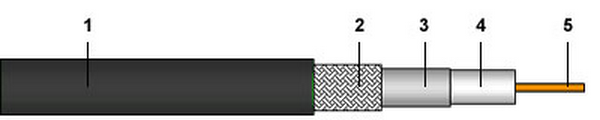

Aufbau:
1 = Mantel:	PVC Ø 6.0 mm schwarz
2 = Schirm Nr. 1	Geflecht CU-Drähte verzinnt (0.10 mm) min. 91 % deckend
3 = Schirm Nr. 2	Aluminiumfolie
4 = isolation:	Schaum-PE Ø 3.66 mm
5 = Leiter:	Blanke CU-Drähte 0.82 mm
Technische Daten:
Leiterwiderstand innen:		33 Ohm/km
Leiterwiderstand aussen:		13 Ohm/km
Screening efficiency:		> 90 dB
Dämpfung:	at 1 MHz	< 1.0 dB/100m
	at 3.6 MHz	< 1.7 dB/100m
	at 10 MHz	< 3.2 dB/100m
	at 71.5 MHz	< 7.3 dB/100m
	at 135 MHz	< 9.7 dB/100m
	at 180 MHz	< 11.1 dB/100m
	at 270 MHz	< 13.6 dB/100m
	at 360 MHz	< 15.8 dB/100m
	at 540 MHz	< 18.6 dB/100m
	at 720 MHz	< 22.8 dB/100m
	at 1000 MHz	< 27.1 dB/100m
	at 1500 MHz	< 34.8 dB/100m
	at 2250 MHz	< 42.3 dB/100m
Impedance:		75 Ohm
Capacitance:		< 54 pF/mt.
Return Loss (RL):		> 20dB up to 2.25 GHz
Digital frequency data transmission distances :
SMPTE 259M composite NTSC	143 Mb/s	410m (max.)
ITU-R BT. 601 compsoite PAL	177 Mb/s	375m (max.)
SMPTE 259M component video	270 Mb/s	310m (max.)
SMPTE 259M compressed HDTV	360 Mb/s	271m (max.)
SMPTE 344M compressed HDTV	540 Mb/s	220m (max.)
SMPTE 292M HDTV	1485 Mb/s	84m (max.)
