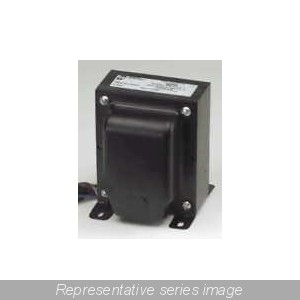

Hammond Audio Transformer 1.9K OHM 120 WATT 1650T

192,74 €

incl. 19% VAT. , plus

Manufacturers recommended retail price: 207,66 €

(Save 7.18%, i.e. 14,92 €)

From	Unit price / Stk
10	189,78 €*
25	185,33 €*

Stk

Features

Please see our NEW & improved versions (easy wire secondary series).
Designed for push-pull tube output circuits.
Enclosed (shielded), 4 slot, above chassis Type "X" mounting.
Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. - ref. 1 Khz) minimum.
Insulated flexible leads 8" min.
Manufactured with plastic coil forms for coil support and insulation.
Typical applications - Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output.
Due to the unique interleaving of the windings BOTH secondary windings must be engaged to meet specifications (see hook-up diagrams below).
For the "ultimate" in Push-Pull output see our line of epoxy potted output transformers.

Shipping weight:	4,72 kg
Item weight:	4,72 kg
