Lundahl LL1581XL Splitting Audio Transformer

94,01 €
(79,00 € excl. vat)
Scale price:
  • from 5: 90,45 €*
  • from 10: 87,19 €*
  • from 20: 83,10 €*
* Price per unit
Scale price:
  • from 5: 90,45 €*
  • from 10: 87,19 €*
  • from 20: 83,10 €*
* Price per unit
including 19% VAT., plus shipping
  • In stock!
  • Stock: More than 10 available
  • Shipping time: 1 - 2 workdays
Order Now
Category
Manufacturer
Item no.
  • DALL1581XL
Product weight
  • 0,07 kg
Shipping weight
  • 0,10 kg
Compliance

Description

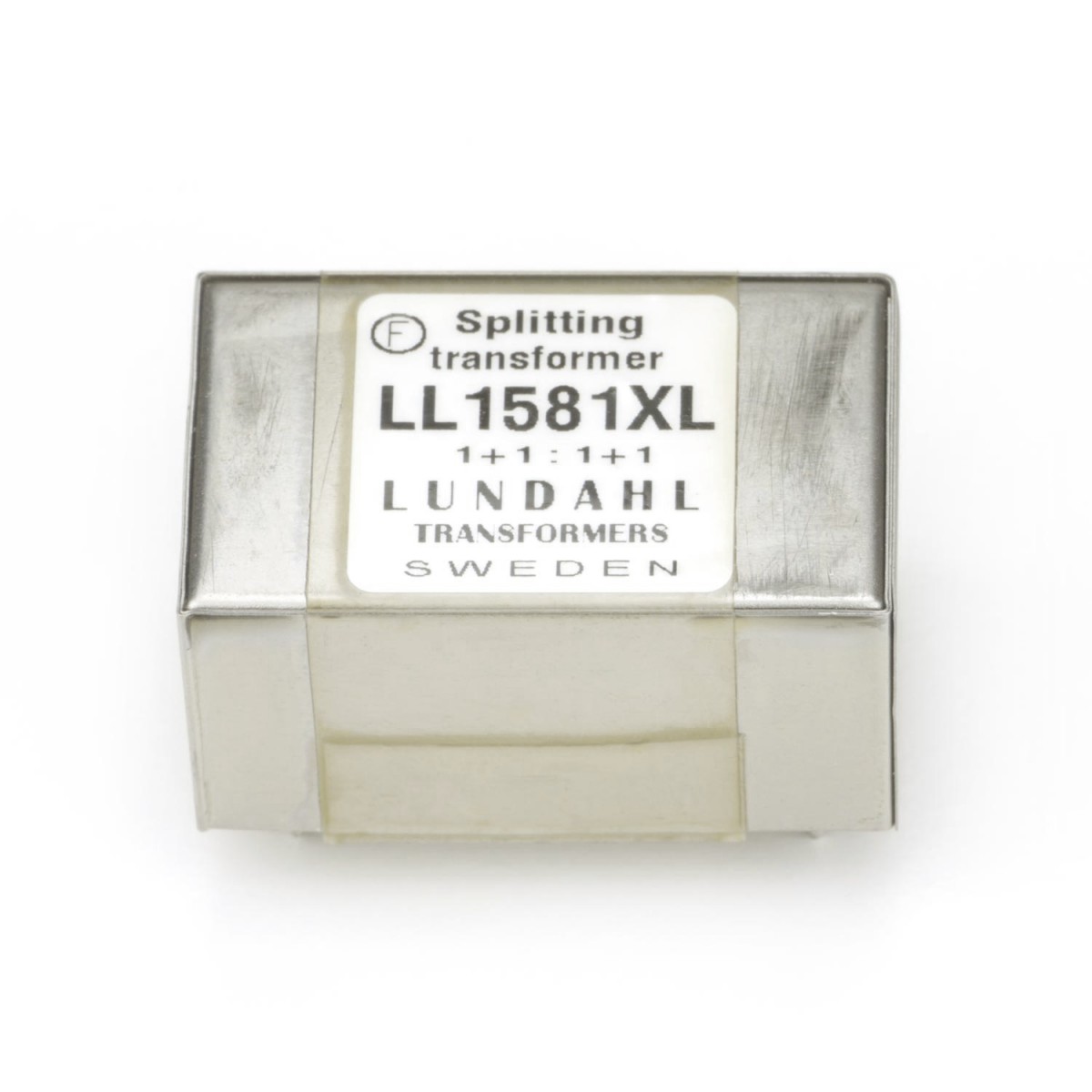

In many splitting applications, the splitting transformer must have a high immunity to input common mode signals, to stray magnetic fields from e.g. power transformers and to large ground potential differences in receiving systems. The LL1581XL is developed to handle those types of cases.

When designing the LL1581, Lundahl used their well established two coil structure to create a transformer with a high degree of symmetry. The transformer is built up from two primary windings (which should be used in parallel) and two secondary windings. Each secondary winding is built up from two sections, one from each coil. Its own electrostatic shields surround each secondary section. The symmetric structure results in an internal cancellation of noise signals caused by external magnetic field. It also increase immunity to ground noise between secondary systems and reduces the effects of input common mode signals.

The transformer is housed in a mu-metal can and is impregnated in solventless epoxy resin.

Spezifications

Weight: 64g
Dimensions (Max. L x W x H above PCB in mm): 38 x 24 x 20.5
Frequency responde (Ref: -6dNu, 1kHz): 10Hz - 100kHz +/- 0.5dB
