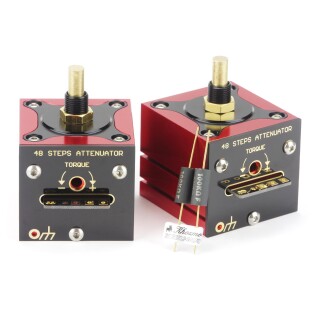

Khozmo Stepped Attenuator DUAL Mono, Vishay Dale

26820,93 ¥
(22538,60 ¥ excl. vat)
including 19% VAT., no shipping costs
  • Availability: 1
  • Stock: 1 available
Order Now
Please select
  • Shunt Type Attenuator

Category
Manufacturer
Item no.
  • KHZSHA-D-VD
Shipping weight
  • 0,10 kg
Function

Description

48 step Attenuator Switch MK2

SHUNT type: Only two resistors in signal path
Switching type: MBB (Make Befor Break)
Number of steps: 48
Attenuation range: -60 dB ... 0 dB
Attenuation per step: steps 1 to 11 - 2dB, 12 to 48 - 1dB
Contact material: Hard gold
Polished wiper and contact pins
Extremely short signal path
Channel matching: +/-0.1 dB
Resistance: 10, 20, 50, 100, 250 kohm or custom values
Resistors: Vishay/Dale RN55 1% 100ppm , 1/8W, low noise, non-inductive, metal film
Mechanical life: > 50 000 cycles
CNC machined PA11 aluminium body
Precision ball bearing support
Shaft diameter: 6 mm
Indexing angle: 7,2 deg
