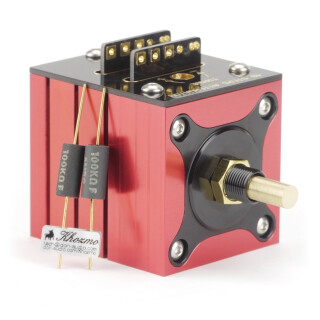

Khozmo Stepped Attenuator 48 positions Shunt, Vishay SMD 1% MK2
Category
Manufacturer
Item no.
- KHZSHA-VD
Shipping weight
- 0,10 kg
Function
Interesting items
Description
48 step Attenuator Switch SMD MK2
SHUNT type: Only two resistors in signal path
Switching type: MBB (Make Befor Break)
Number of steps: 48
Attenuation range: -60 dB ... 0 dB
Attenuation per step: steps 1 to 11 - 2dB, 12 to 48 - 1dB
Contact material: Hard gold
Polished wiper and contact pins
Extremely short signal path
Channel matching: +/-0.1 dB
Resistance: 10, 20, 50, 100, 250 kohm or custom values
Resistors: Vishay/Dale RN55 1% 100ppm , 1/8W, low noise, non-inductive, metal film
Mechanical life: > 50 000 cycles
CNC machined PA11 aluminium body
Precision ball bearing support
Shaft diameter: 6 mm
Indexing angle: 7,2 deg
