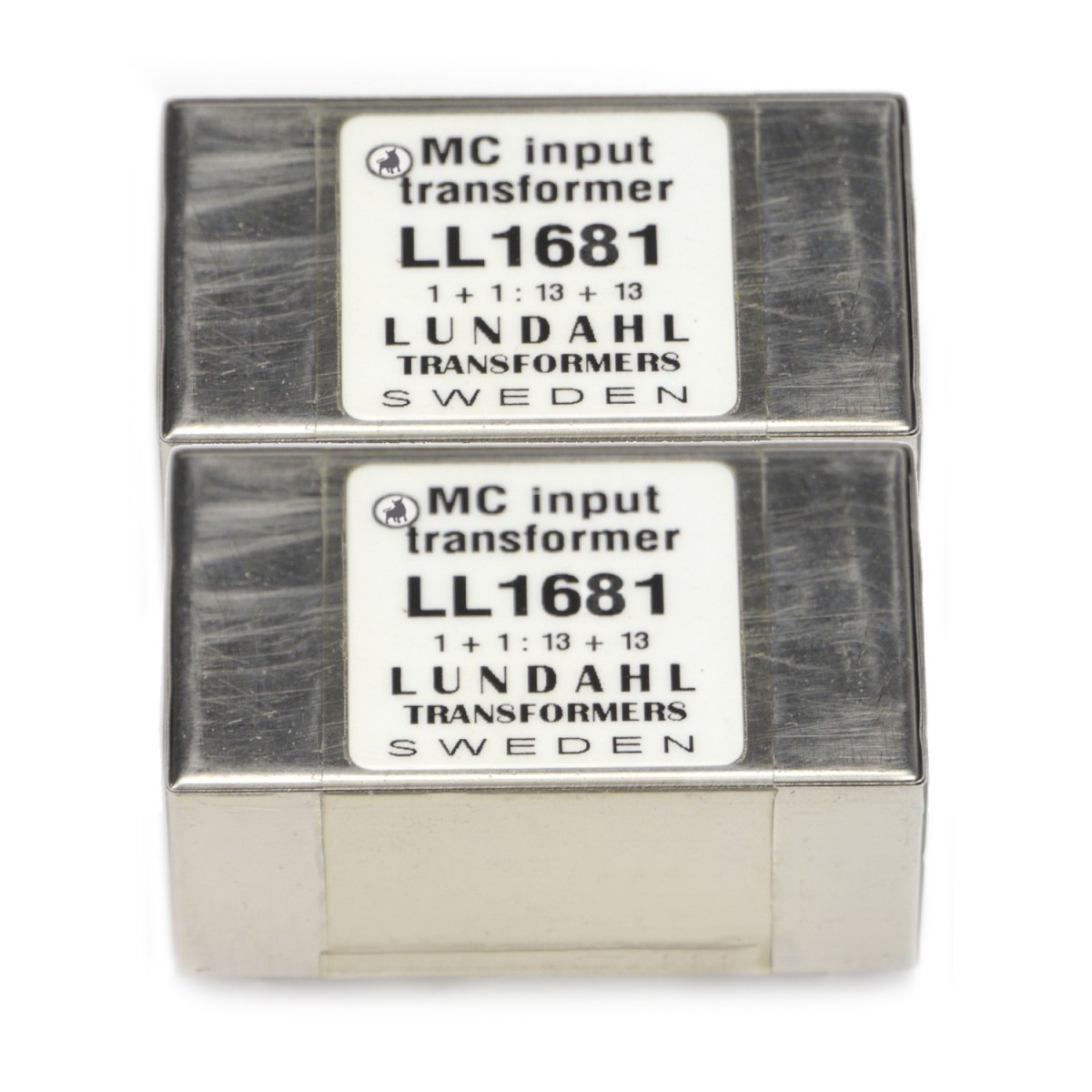

Lundahl LL1681 Matched Pair - Moving Coil Input Audio Transformer

269,00 €
(226,05 € excl. vat)
Recommended retail price: 164,81 €
including 19% VAT., plus shipping
  • In stock!
  • Shipping time: 1 - 2 workdays
Order Now
Category
Manufacturer
Item no.
  • LL1681MA
Product weight
  • 0,08 kg
Shipping weight
  • 0,10 kg
Application
Compliance

Description

The LL1681 is a large core moving coil input transformer with a mu-metal core.
The LL1681 consists of two coils, each with a two-sectioned primary winding and one high level secondary winding (with paper insulation) separated by electrostatic shields. The transformer is magnetically shielded by a mu metal housing.

Turns ratio: 1 + 1 : 13 + 13
Dims (Length x Width x Height above PCB (mm)): 48 x 29 x 20

Spacing between pins: 5.08 mm (0.2")
Spacing between rows of pins: 35.56mm (1.4")
Weight: 90 g
Rec. PCB hole diameter: 1.5 mm

Customer-Pics

Log in to upload a pic!


At moment there are no customer pics for this product.

Product Tags

Add tag

Ratings from users

(This product has got No Reviews)

Share your experience with other customers

This product consists of

  1. Lundahl LL1681 Moving Coil Input Audio Transformer
    Lundahl LL1681 Moving Coil Input Audio Transformer

    Average Rating: 5/55
    Special price: 109,00 €
    (91,60 € excl. vat)
    Old price: 118,92 €
    including 19% VAT., plus shipping
