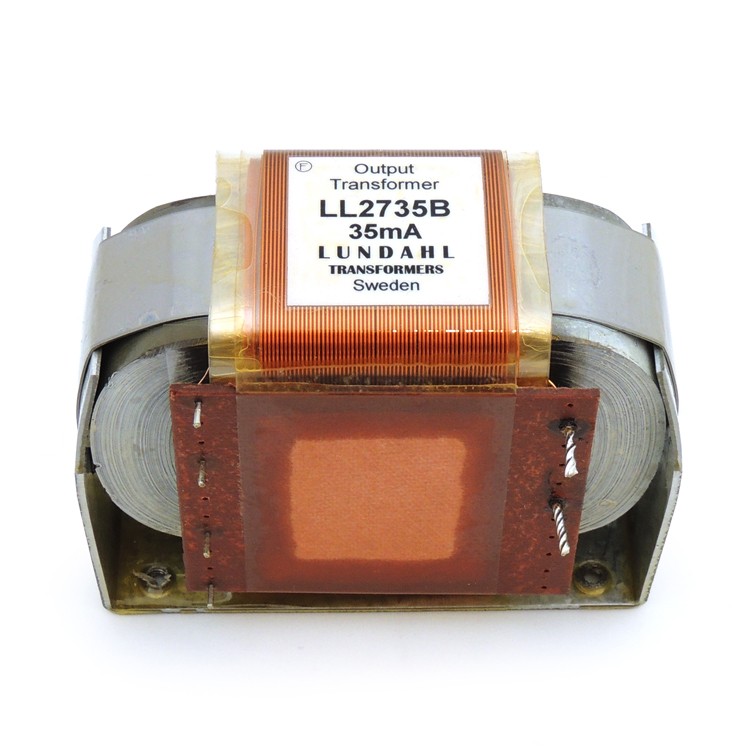

Lundahl LL2735B Tube amplifier output transformer
Description
The LL2735B is a tube amplifier output transformer for 16k : 8 ohms impedance ratio, primarily designed for
for high rp tubes such as 10Y, 801A and EML20B in single-end applications.
The transformer is a dual coil transformer where coils are wound using our high internal isolation technique with isolation foil between each layer of copper wire. Each coil consist of one primary and two secondary sections. The isolation between primary and secondary sections are gradually increased closer to the tube anode connection in order to minimize capacitive energy storage.
The core is a silicon-iron audio C-core of our own production.
