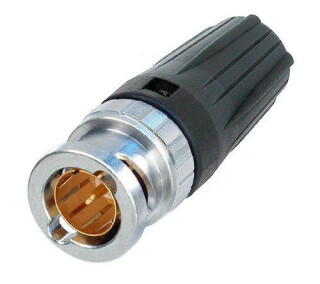

Neutrik NBNC75BJP9 rearTWIST HD BNC Cable Connector

Neutrik NBNC75BJP9 rearTWIST HD BNC Cable Connector

SKU: NBNC75BJP9-DON

3,00 €

incl. 19% VAT. ,

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

The rearTWIST HD BNC cable connector offers a true 75 ? design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
Belden 1505F, Bryant BD SD53F, Cordial CVI 08-37 HD, Klotz VD083LP 0.8L/3.7DZ, Tesca Presto

Crimp size:
Pin: 1.6 mm (square)
Shield: 6.47 mm (hex)

Features & Benefits

“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
True 75 ? design meets the stringent HDTV / DVD requirements
Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
Snug-fit center pin insert provides tactile feedback
Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
Excellent cable protection and retention
Precise Swiss machined brass parts for outstanding durability
Accessories include color coded boots in 10 standard colors, crimp tool and dies

Product

Title

NBNC75BJP9

Connection Type

BNC 75 ?

Gender

male

Electrical

Contact resistance

? 3 m? (inner)

Contact resistance

? 2 m? (outer)

Dielectric strength

1,5 kVdc

Insulation resistance

> 5 G?

Rated voltage

<50 V

VSWR

?1.050/>32 dB up to 1 GHz
?1.065/>30 dB up to 2 GHz
?1.100/>26 dB up to 3 Ghz

Mechanical

Cable O.D.

6.3 mm

Cable retention

> 30 N (Center)

Crimp size

6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)

Crimp size (pin)

1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)

Insertion force

< 25 N

Lifetime

> 1000 mating cycles

Locking device

Bayonett

Cable anchoring

Jacket crimping

Environmental

Temperature range

-30 °C to +85 °C

Contact crimpability

Complies with IEC 60803 and IEC 60352-2

Item information	Value
Series:	BNC rearTWIST HD BNC Cable Connectors
