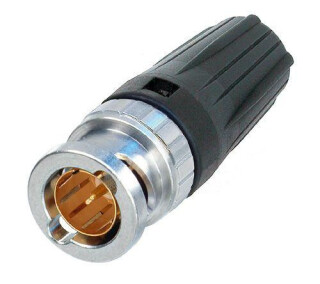

The rearTWIST HD BNC cable connector offers a true 75 ? design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
MCC-AVBRG6DBHD

Crimp size:
Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)

Features & Benefits

“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
True 75 ? design meets the stringent HDTV / DVD requirements
Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
Snug-fit center pin insert provides tactile feedback
Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
Excellent cable protection and retention
Precise Swiss machined brass parts for outstanding durability
Accessories include color coded boots in 10 standard colors, crimp tool and dies

Product

Title

NBNC75BTU13

Connection Type

BNC 75 ?

Gender

male

Electrical

Contact resistance

? 3 m? (inner)

Contact resistance

? 2 m? (outer)

Dielectric strength

1,5 kVdc

Impedance

75 ?

Insulation resistance

> 5 G?

Rated voltage

500 V

VSWR

? 1.050 / > 32 dB up to 1 GHz
? 1.065 / > 30 dB up to 2 GHz
? 1.100 / > 26 d

Mechanical

Cable O.D.

7.3 mm

Cable retention

> 30 N (Center)

Crimp size

7,36 Hex crimp (shield) acc. MIL22520/5-41(A)

Crimp size (pin)

1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)

Insertion force

< 25 N

Lifetime

> 100 mating cycles mating cycles

Locking device

Bayonett

Cable anchoring

Jacket crimping

Material

Contacts

0.2 µm AuCo (Center contact)

Insert

PTFE

Shell

Brass (CuZn39Pb3)

Shell plating

Optalloy®

Item information	Value
Series:	BNC rearTWIST HD BNC Cable Connectors
