Neutrik NC10MRX-14-B XLR Cable Connector

SKU: NC10MRX-14-B-DON

19,03 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

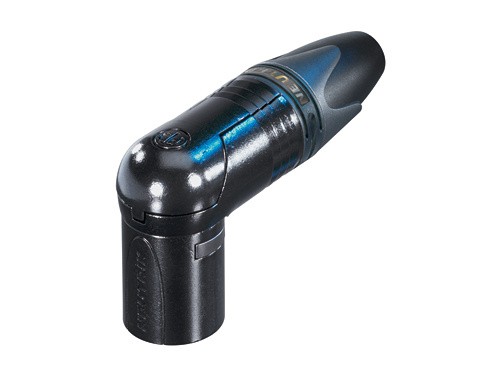

Easy to assemble 8 + 2 pole right-angle male XLR cable connector, black chrome metal housing, secure locking and proven Neutrik chuck type strain relief

Features & Benefits

Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
Superior ruggedness compared to RJ45 type connectors
All metal housing offers best overall RF protection and electromagnetic shielding

Product

Title

NC10MRX-14-B

Connection Type

XLR

Gender

male

Electrical

Contact resistance

? 3 m?

Dielectric strength

1 kVdc

Insulation resistance

> 10 G? (initial), 0.1 (after damp heat test)

Number of electronical contacts

8 + 2

Rated current per contact

16 A (power pins), 3 A (data pins)

Cable shield - shell connection

choosable

Transmission performance

CAT 5e

Mechanical

Cable O.D.

8.0 - 10.0 mm

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiresize

2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins)

Material

Bushing

PA / PU

Contact plating

0.2 µm Au hard alloy over 2 µm Ni

Contacts

Brass (CuZn39Pb3)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Zinc diecast (ZnAl4Cu1)

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Black chromium

Strain relief

POM

Environmental

Flammability

UL 94 HB

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Manufacturing Standard

IEC 61076-2-103

Item information	Value
Shell:	Black chromium
