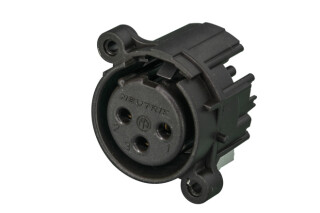

Neutrik NC3FAHL1-0 XLR Chassis Connector

SKU: NC3FAHL1-0

1,14 €

incl. 19% VAT. , plus

Made to order

3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, lateral left PCB mount, Retention spring instead of latch

The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23mm between centres). New designed tulip type contacts with hard gold plating and polished contact areas. UL recognized component.

Features & Benefits

Smallest XLR receptacles, highest packing density
Plastic housing, steel retention spring
Tulip type female contact
Polished contact areas and hard gold plating
Housing flammability UL94V-0

Product

Title

NC3FAHL1-0

Connection Type

XLR

Gender

female

Electrical

Capacitance between contacts

? 4 pF

Contact resistance

? 6 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

6 A

Rated voltage

< 50 V

Grounding Options

Pin 1 connected direct to front panel and connector shell, no separate ground contact

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Locking force

> 20 separating force N

Locking device

Retention spring

Mounting direction

Rear mounting

Chassis shape

Mounting

A-Screw

Material

Contacts

Bronze (CuSn6)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Environmental

Approvals

Flammability

UL 94 V-0

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Contacts:	Goldplated pins
Series:	A
