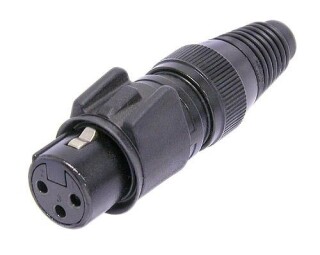

Neutrik NC3FX-HD-B XLR Cable Connector

SKU: NC3FX-HD-B-DON

11,32 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

3 pole female cable connector, "heavy duty", all metal design, black, gold contacts

The X-HD Series is a "Heavy duty" XLR cable connector for outdoor use. All metal design, dust and water protected according to IP 65 by mating with related X-HD cable connector or MPR-HD chassis connector. Gold contacts are standard.

Features & Benefits

"Heavy duty" cable connector for outdoor use
All metal design
NC*FX-HD mates with NC*MPR-HD chassis connector and NC*MX-HD cable connector
Dust and water protected according IP 65 in mated condition
Gold contacts
Chuck type strain relief system for secure clamping of cables
Boot with rubber gland gives high protection against bending stresses

Product

Title

NC3FX-HD-B

Connection Type

XLR

Gender

female

Electrical

Capacitance between contacts

? 4 pF

Contact resistance

? 3 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

16 A

Rated voltage

< 50 V

Mechanical

Cable O.D.

3.5 - 8.0 mm

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiresize

max. 2.5 mm²

Wiresize

max. 14 AWG

Wiring

Solder contacts

Locking device

Latch lock

Material

Boot

Polyurethan

Bushing

Stainless steel

Contact plating

0.2 µm Au hard alloy over 2 µm Ni

Contacts

Bronze (CuSn8)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

St3K32 (latch) / Ck 67 (spring)

Shell

Stainless steel

Shell plating

Black chromium

Strain relief

Polyacetal (POM)

Sealing jacket

EPDM

Environmental

Approvals

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 65

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Contacts:	Goldplated pins
Series:	X-HD
Shell:	Black chromium
