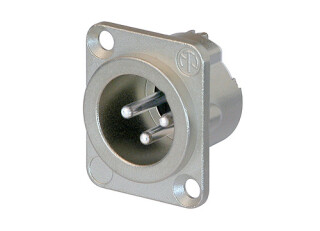

Neutrik NC3MD-LX XLR Chassis Connector

SKU: NC3MD-LX-DON

3,88 €

incl. 19% VAT. , plus

56 In stock
Delivery time: 1 Workdays (DE - int. shipments may differ)

Description
Reviews

3 pole male receptacle, solder cups, Nickel housing, silver contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.

Features & Benefits

All metal housing offers best overall RF protection and electromagnetic shielding
Duplex ground contact for excellent contact integrity between chassis and cable connector
Male connector's retention bar replaces plastic design with all metal version improving pull-out force
Larger solder contacts for easier termination
Optional connection to easily join pin1 to chassis ground
D-style housing provides installation compatibility with industry standard D mounting dimensions

Product

Title

NC3MD-LX

Connection Type

XLR

Gender

male

Electrical

Capacitance between contacts

? 4 pF

Contact resistance

? 5 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

16 A

Rated voltage

< 50 V

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiresize

max. 2.5 mm²

Wiresize

max. 14 AWG

Wiring

Solder contacts

Locking device

Latch lock

Chassis shape

Material

Contact plating

2 µm Ag over 2 µm Ni

Contacts

Brass (CuZn35Pb2)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Nickel

Environmental

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Contacts:	Silver pins
Series:	DLX
Shell:	Nickel
