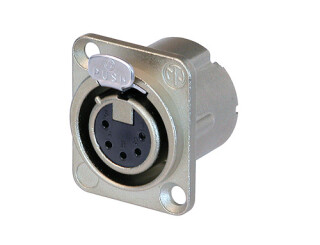

Neutrik NC5FD-LX XLR Chassis Connector

SKU: NC5FD-LX-DON

9,34 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

5 pole female receptacle, solder cups, Nickel housing, silver contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

Features & Benefits

All metal housing offers best overall RF protection and electromagnetic shielding
Duplex ground contact for excellent contact integrity between chassis and cable connector
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Larger solder contacts for easier termination
Optional connection to easily join pin1 to chassis ground
D-style housing provides installation compatibility with industry standard D mounting dimensions

Product

Title

NC5FD-LX

Connection Type

XLR

Gender

female

Electrical

Capacitance between contacts

? 7 pF

Contact resistance

? 5 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

7,5 A

Rated voltage

< 50 V

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiresize

max. 1.0 mm²

Wiresize

max. 18 AWG

Wiring

Solder contacts

Locking device

Latch lock

Chassis shape

Material

Contact plating

2 µm Ag over 2 µm Ni

Contacts

Brass (CuZn39Pb3)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Nickel

Environmental

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Contacts:	Silver pins
Series:	DLX
Shell:	Nickel
