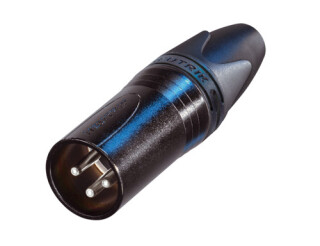

Neutrik NC3MXX-HA-BAG XLR Cable Connector

3,67 €
(3,08 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 50 days
  • Shipping time: 51 - 52 workdays
Order Now
Category
Item no.
  • NC3MXX-HA-BAG-DON
Contacts
Series

Description

3 pole male cable connector with black metal housing, silver contacts and crimp termination (standard B crimp).

Special version of the XLR cable connector XX Series with crimp terminals.



Features & Benefits

  • Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
  • Gastight and Solderless connection (RoHS compliant)
  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
Title
NC3MXX-HA-BAG
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 3 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
1 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiresize
0.22 - 0.34 mm²
Wiresize
24 - 22 AWG
Wiring
Crimp contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
2 µm Ag
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
