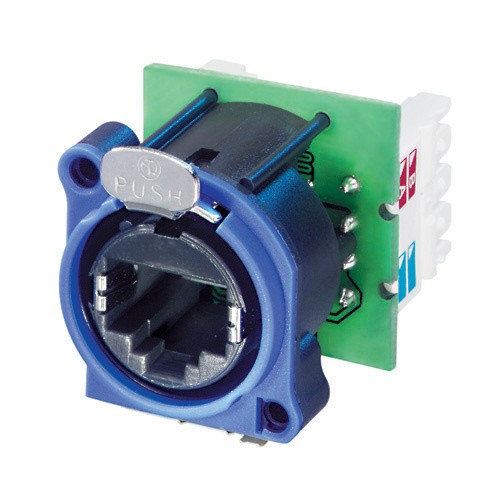

Neutrik NE8FAV-Y110 Panel mount RJ45 receptacle, IDC 110 punch down terminals, A-Series cutout with latch lock system

SKU: DON-NE8FAV-Y110
GTIN: 7613187004896
HAN: NE8FAV-Y110
Category: Plugs & Jacks
Manufacturers: Neutrik

Panel mount RJ45 receptacle, IDC 110 punch down terminals, A-Series cutout with latch lock system, max. panel thickness 3 mm

1426,55 ¥

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The all plastic A-Series offers the most space saving and cost effective design.

Features & Benefits

Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
Approved latch lock system
Most space saving and cost effective design
Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
Selectable ground - panel connection
Easy and quick mounting using 110 type punch down terminals

Product

Title

NE8FAV-Y110

Gender

female

Electrical

Contact resistance

< 10 m? (inner)

Dielectric strength

1 kVdc

Frequencyrange

1 - 100 MHz

Insulation resistance

> 0.5 G?

Rated current per contact

1,5 A

Rated voltage

50 V

Transmission performance

CAT 5e

Standard compliance

TIA/EIA 586B, IEC11801

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Panel thickness

max. 3 mm 0.12'

Wiresize

0.14 - 0.5 mm²

Wiresize

26 - 20 AWG

Wiring

IDC 110 punch down terminals

Locking device

Latch lock

Mounting direction

rear

Chassis shape

Material

Contact plating

0.2 µm Au over Ni plating

Contacts

Bronze (CuSn8)

Insert

PBTP 15 % GR

Shell

PBTP 15 % GR

Strain relief

CuZn35Pb2, Tin plated

Environmental

Flammability

UL 94 V-0

Temperature range

-30 °C to +80 °C

Item information	Value
Series:	A
Pins:	RJ45
Gender:	female
Shipping weight:	0,10 kg
keine preissuchmaschinen:	1
