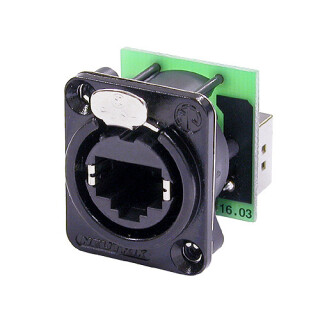

Neutrik NE8FDP-B etherCON Chassis Connector D Series

1222,39 ¥
(1027,22 ¥ excl. vat)
including 19% VAT., plus shipping
  • In stock!
  • Stock: More than 100 available
  • Shipping time: 1 - 2 workdays
Order Now
Category
Manufacturer
Item no.
  • DON-NE8FDP-B
Product weight
  • 0,01 kg
Shipping weight
  • 0,10 kg
Series
Material
Pins
Gender

Interesting items

  1. Rotary Switch 2024, 2 Pole 24 Position
    Rotary Switch 2024, 2 Pole 24 Position
    1253,90 ¥
    (1053,70 ¥ excl. vat)
    including 19% VAT., plus shipping
  2. 10pcs 3-Pin PCB connector socket
    10pcs 3-Pin PCB connector socket
    302,45 ¥
    (254,16 ¥ excl. vat)
    including 19% VAT., plus shipping

Description

RJ45 feedthrough receptacle, black D-shape metal flange with the latch lock

RJ45 feedthrough receptacle, black D-shape metal flange with the latch lock, mounting screws included

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.



Features & Benefits

  • Accommodates NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
Product
Title
NE8FDP-B
Gender
female
Electrical
Contact resistance
< 10 m?
Dielectric strength
1 kVdc
Frequencyrange
1 - 100 MHz
Insulation resistance
> 0.5 G?
Rated current per contact
1,5 A
Rated voltage
< 50 V
Transmission performance
CAT 5e
Standard compliance
TIA/EIA 586B, IEC11801
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Panel thickness
max. 4 mm 0.16'
Wiring
Feedthrough
Locking device
Latch lock
Chassis shape
D
Material
Contact plating
0.2 µm Au over Ni plating
Contacts
Bronze (CuSn8)
Insert
PBTP 15 % GR
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Environmental
Flammability
UL 94 V-0
Temperature range
-30 °C to +80 °C
