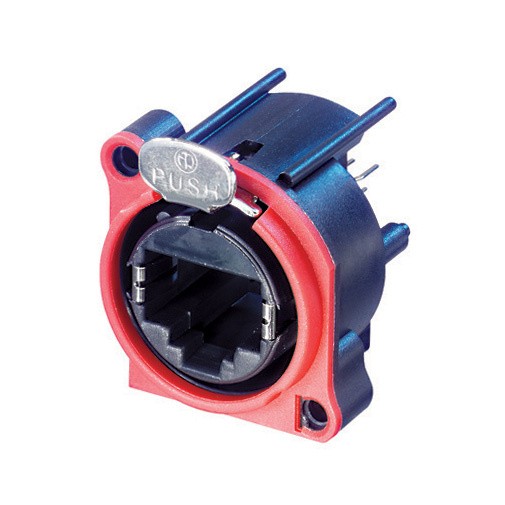

Neutrik NE8FAV etherCON Chassis Connector A Series

SKU: NE8FAV-DON

4,77 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Description
Reviews

Vertical PCB mount RJ45 receptacle, A-Series cutout with latch lock, max. panel thickness 3mm.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The all plastic A-Series offers the most space saving and cost effective design.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Features & Benefits

Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
Approved latch lock system
Most space saving and cost effective design
Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
Isolated to panel ground

Product

Title

NE8FAV

Gender

female

Electrical

Contact resistance

< 10 m?

Dielectric strength

1 kVdc

Frequencyrange

1 - 100 MHz

Insulation resistance

> 0.5 G?

Rated current per contact

1,5 A

Rated voltage

< 50 V

Transmission performance

Class D

Standard compliance

TIA/EIA 586B, IEC11801

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Panel thickness

max. 3 mm 0.12'

Wiring

vertical PCB mount

Locking device

Latch lock

Mounting direction

Rear mounting

Chassis shape

Material

Contact plating

0.2 µm Au over Ni plating

Contacts

Bronze (CuSn8)

Insert

PBTP 15 % GR

Shell

PBTP 15 % GR

Environmental

Flammability

UL 94 V-0

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Series:	A
