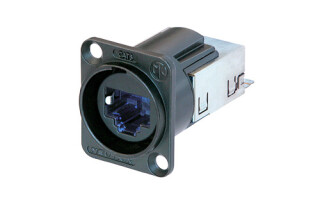

Neutrik NE8FDY-C6-B D-shape CAT6 panel connector with black Chrome housing
Category
Manufacturer
Item no.
- DON-NE8FDY-C6-B
Shipping weight
- 0,10 kg
Color
Shell
Gender
Description
D-shape CAT6 panel connector with black Chrome housing
Features & Benefits
- CAT6 compliant - data rate up to 10 GBit/s
- CAT6 performance - fast data transmission and high bandwidth applications
- CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
- IP65 - Dust and waterproof in mated condition
- Shielded system - high noise immunity and EMI protection
- Push Pull mating - secure and proven locking system
- Ground lead jumper on panel connector with selectable grounding option
- Gas-tight IDC termination without tool
Product
Title
NE8FDY-C6-B
Gender
female
Electrical
Contact resistance
< 10 m? (inner)
Dielectric strength
1 kVdc
Frequencyrange
1 - 250 MHz
Insulation resistance
> 0.5 G?
Rated current per contact
1,5 A
Rated voltage
50 V
Transmission performance
CAT 6
Standard compliance
TIA/EIA 586B, IEC11801
Mechanical
Insertion force
? 40 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Panel thickness
max. 3 mm 0.12'
Wiresize
0.5 - 0.65 mm²
Wiresize
24 - 22, stranded AWG 26/7 - 22/7 AWG
Locking device
Push-Pull
Chassis shape
D
Material
Contact plating
0.7 µm Au over 1.2 µm Ni plating
Contacts
Bronze (CuSn8)
Insert
Polycarbonate
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
Stainless steel
Environmental
Flammability
UL 94 HB
Protection class
IP 65
Temperature range
-10 °C to +60 °C
