Neutrik NP3M-H nanoCON

SKU: NP3M-H-DON

11,19 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

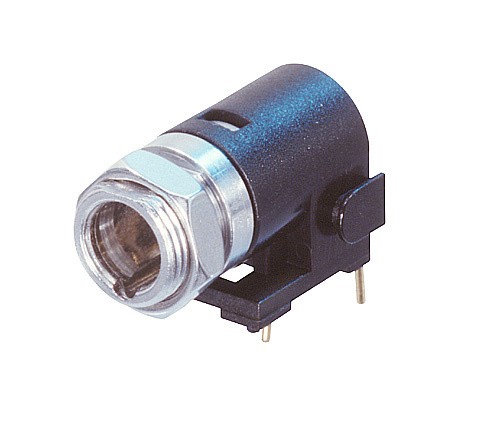

3 pole male chassis connector, horizontal PCB mount

The nanoCON is the smallest lockable 3 pole connector in the world. It offers a robust metal housing, a metal locking device, gold plated contacts and excellent cable retention.

Features & Benefits

World's smallest circular lockable multipole connector
Robust metal housing with gold plated contacts
Reliable and versatile in applications like medical equipment, control systems, sensors or audio applications such as miniature and wireless microphones and portable mixers
Pre-mating contact 1

Product

Title

NP3M-H

Connection Type

nanoCON

Gender

male

Electrical

Contact resistance

? 12 m?

Dielectric strength

1 kVdc

Insulation resistance

> 1 G? (after damp heat test IEC 68-2-30)

Rated current per contact

2 A

Rated voltage

< 50 V

Mechanical

Lifetime

500 mating cycles

Wiresize

0.2 mm² / 0.14 mm² (solid / stranded wire)

Wiresize

24 AWG / 26 AWG

Wiring

Horizontal PCB mount

Locking device

Latch lock

Mounting direction

Rear mounting

Chassis shape

7 mm

Material

Contact plating

0.5 µm Au

Contacts

Brass (CuZn35Pb2)

Insert

PETP

Shell

Brass (CuZn39Pb2)

Environmental

Flammability

UL 94 V-0

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Series:	nanoCON
