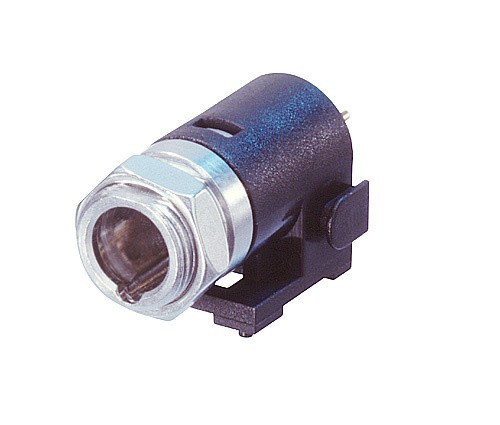

Neutrik NP3M-V nanoCON
Description
3 pole male chassis connector, vertical PCB mount
The nanoCON is the smallest lockable 3 pole connector in the world. It offers a robust metal housing, a metal locking device, gold plated contacts and excellent cable retention.
Features & Benefits
- World's smallest circular lockable multipole connector
- Robust metal housing with gold plated contacts
- Reliable and versatile in applications like medical equipment, control systems, sensors or audio applications such as miniature and wireless microphones and portable mixers
- Pre-mating contact 1
Product
Title
NP3M-V
Connection Type
nanoCON
Gender
male
Electrical
Contact resistance
? 12 m?
Dielectric strength
1 kVdc
Insulation resistance
> 1 G? (after damp heat test IEC 68-2-30)
Rated current per contact
2 A
Rated voltage
< 50 V
Mechanical
Lifetime
500 mating cycles
Wiresize
0.2 mm² / 0.14 mm² (solid / stranded wire)
Wiresize
24 AWG / 26 AWG
Wiring
vertical PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
7 mm
Material
Contact plating
0.5 µm Au
Contacts
Brass (CuZn35Pb2)
Insert
PETP
Shell
Brass (CuZn39Pb2)
Environmental
Flammability
UL 94 V-0
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
