Neutrik NP3TT-AU-R Plug 0.173'' Bantam Type Miniature Plug

SKU: NP3TT-AU-R-DON
Category: Plug

Price on request

Made to order

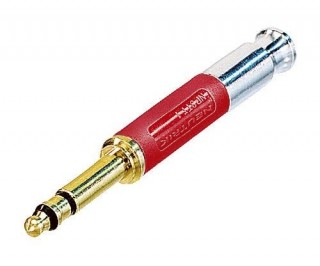

4.4 mm (0.173") tiny telefone plug bantam type, solder termination for T + R, crimp termination for S, HEX crimp cable strain relief, red plastic housing, gold contact. Ideal use with TT patch panels.

Features & Benefits

Designed for pro audio applications
Gold contacts guarantee best conductivity
Robust egonomic design - long-lasting and depenable
Standard HEX crimp cable clamp for shield termination and cable retention
Colored sleeves available for coding and marking

Product

Title

NP3TT-AU-R

Connection Type

Plug

Gender

male

Electrical

Contact resistance

depends on mating connector m?

Dielectric strength

1 kVdc

Insulation resistance

> 2 G? (initial)

Rated current per contact

depends on mating connector A

Rated voltage

< 50 V

Mechanical

Cable O.D.

4 - 4.8 mm

Crimp size

5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)

Lifetime

> 1000 mating cycles

Wiresize

0,25 mm²

Wiresize

24 AWG

Wiring

Solder contacts

Material

Bushing

Polyacetal (POM) + PU

Contact plating

0.2 µm Au TRIBOR®

Contacts

Bronze (CuSn6) (Tip)

Insert

Polyamide (PA 6.6 30 % GR)

Shell

Brass (CuZn39Pb3)

Shell plating

2 µm Ni (Su) + PA 6 30% GR (red)

Environmental

Standard compliance

MIL-P-642/13

Solderability

Complies with IEC 68-2-20

Temperature range

-20 °C to +65 °C

Series:	4.4 mm Bantam
