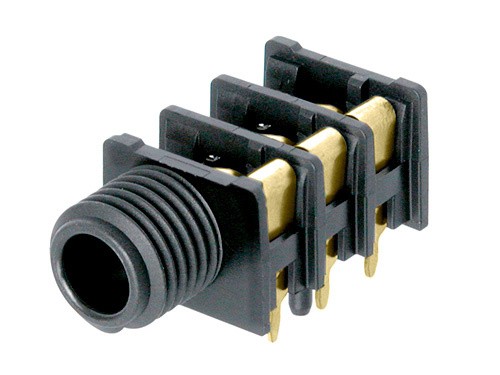

Neutrik NRJ6HF-1-AU Slim Jack

SKU: NRJ6HF-1-AU-DON

112,84 $

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

1/4" stereo jack, switched, gold plated contacts, fully threaded nose, sleeve contact/front panel connection

Horizontal PCB panel mount jack featuring high board packing density by mounting on 15.88 mm (0.625 inch) minimum centers in rows or arrays. Mounting hardware must be ordered separately.

Features & Benefits

High boarded packing densities
A retentions spring ensures optimum grip on inserted plugs, avoiding the chance of lost connection
Mounting nuts available in various styles

Product

Title

NRJ6HF-1-AU

Connection Type

Jack

Gender

female

Electrical

Contact resistance

< 10 m?

Contact resistance

< 10 m?

Dielectric strength

1 kVdc

Insulation resistance

? 1 G? @ 500 V dc

Rated current per contact

3 A

Rated current per contact

0,50 A @ 50 V (Switch contact)

Switching contacts

Mechanical

Insertion force

< 30 N

Withdrawal force

> 10 N

Lifetime

> 10000 mating cycles

Panel thickness

< 3 mm

Wiring

Horizontal PCB mount

Locking device

Retention spring

Mounting direction

Rear mounting

Chassis shape

11.2 mm

Material

Cap / Nut / Washer

PA 6.6 15% GR

Contact plating

0.2 µm Au

Contacts

Bronze (CuSn6)

Shell

Polyamide (PA 6.6 15 % GR)

Ring Nut

Brass (Ni plated)

Environmental

Standard compliance

EIA RS 453, IEC 60603-11

Solderability

Complies with IEC 68-2-20

Temperature range

-25 °C to +70 °C

Item information	Value
Series:	Slim Slim Jacks
