Neutrik NRJ6HF-1-AU Slim Jack
Neutrik NRJ6HH-AU Slim Jack
Description

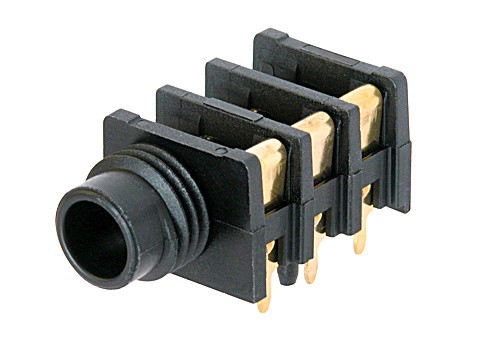

1/4" stereo jack, switched, gold plated contacts, half threaded nose
Horizontal PCB panel mount jack featuring high board packing density by mounting on 15.88 mm (0.625 inch) minimum centers in rows or arrays. Mounting hardware must be ordered separately.
Features & Benefits
- High boarded packing densities
- A retentions spring ensures optimum grip on inserted plugs, avoiding the chance of lost connection
- Mounting nuts available in various styles
Product
Title
NRJ6HH-AU
Connection Type
Jack
Gender
female
Electrical
Contact resistance
< 10 m?
Contact resistance
< 10 m?
Dielectric strength
1 kVdc
Insulation resistance
? 1 G? @ 500 V dc
Rated current per contact
3 A
Rated current per contact
0,50 A @ 50 V (Switch contact)
Switching contacts
3
Mechanical
Insertion force
< 30 N
Withdrawal force
> 10 N
Lifetime
> 10000 mating cycles
Panel thickness
< 1 mm
Wiring
Horizontal PCB mount
Locking device
Retention spring
Mounting direction
Rear mounting
Chassis shape
11.2 mm
Material
Cap / Nut / Washer
PA 6.6 15% GR
Contact plating
0.2 µm Au
Contacts
Bronze (CuSn6)
Shell
Polyamide (PA 6.6 15 % GR)
Ring Nut
Brass (Ni plated)
Environmental
Standard compliance
EIA RS 453, IEC 60603-11
Solderability
Complies with IEC 68-2-20
Temperature range
-25 °C to +70 °C
